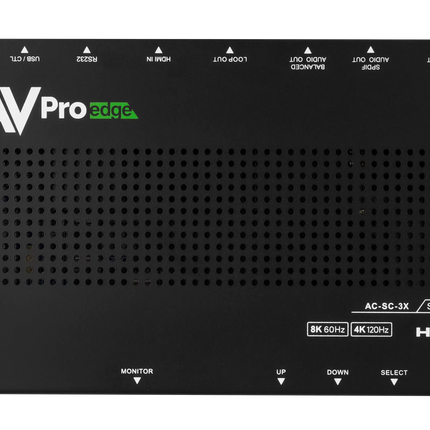

48Gbps 8K60/4K120 HDMI 2.1 Scaler, EDID Manager & Audio De-embedder
- VendorAVPro Edge
48Gbps 8K60/4K120 HDMI 2.1 Scaler, EDID Manager & Audio De-embedder
- VendorAVPro Edge
- Key Benefits
- Specs
- Resources
- In the Box
8K HDMI 2.1 Performance – Full 48 Gbps bandwidth supports 8K resolution with HDR for stunning picture quality
Next-Gen Gaming Ready – VRR and HFR support ensures smooth, tear-free gameplay on the latest game consoles and gaming PCs
Dolby Vision™ Support – Delivers dynamic, scene-by-scene HDR optimization
Flexible Downscaling – Automatically downscales 8K sources to 4K or 1080p for compatibility with legacy displays
Comprehensive Audio Support – Passes through PCM 2-Channel, LPCM 5.1/7.1, AC3, Dolby Digital™, Dolby Digital Plus™, Dolby® TrueHD, Dolby Atmos®, DTS®, DTS-ES®, and DTS:X®
Advanced EDID Management – Includes EDID copy functionality for seamless display compatibility
CEC & eARC/ARC Support – Enables simplified device control and high-quality audio return
HDCP 2.3 Compliant – Backward compatible with all earlier HDCP versions

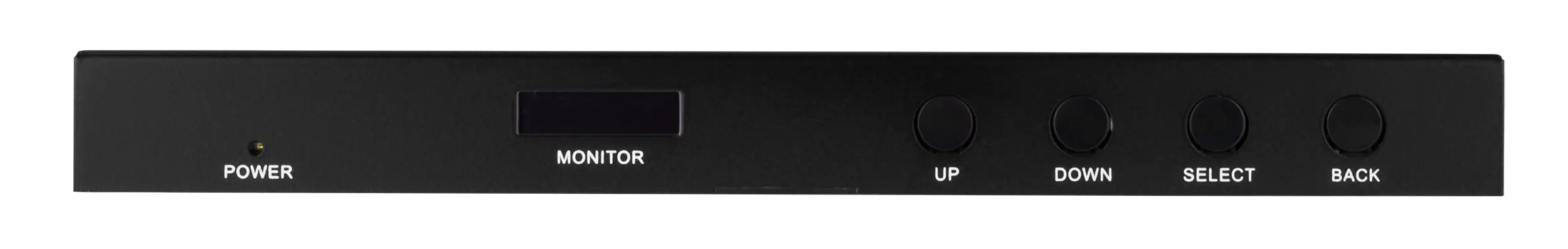

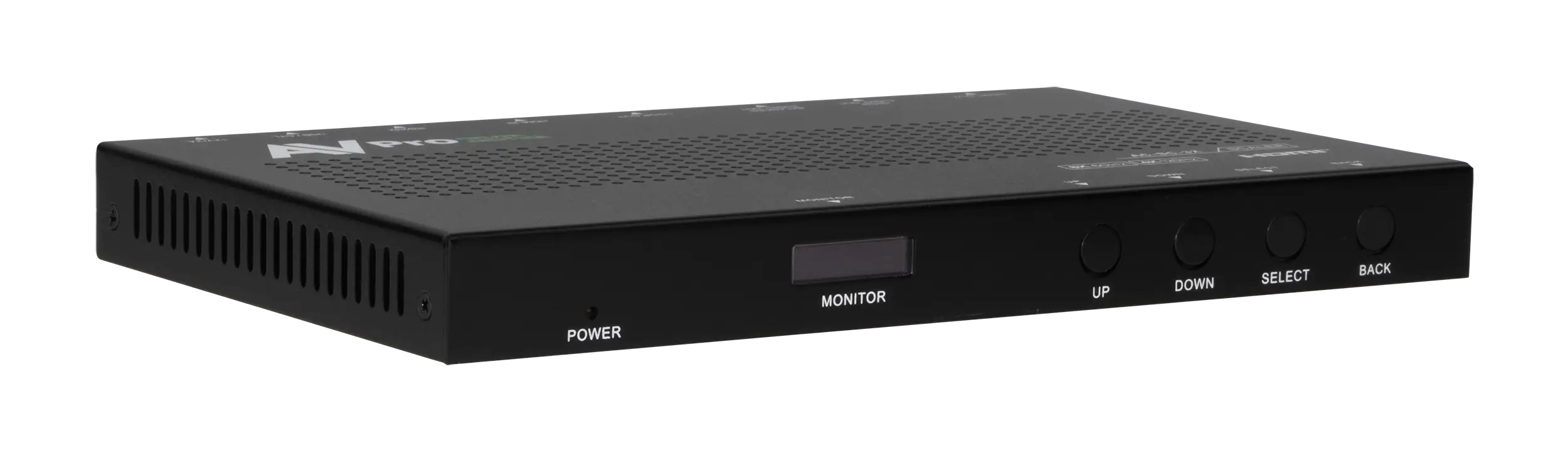

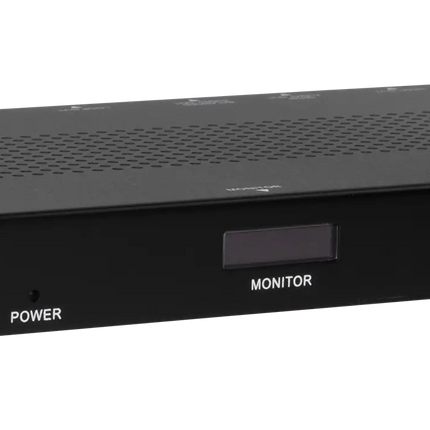

Convenient Front Panel Controls – Easy-access buttons for EDID management and scaling adjustments
Field-Upgradable Firmware – USB Type-C ISP port allows quick and easy firmware updates
| Video: | |
| Video Resolutions | Up to 8K 60Hz 4:4:4/8K 30Hz 4:4:4/4k 120Hz |
| HDR Formats | Dolby Vision, HDR10, HDR10+, HLG |
| Color Space | YUV (Component), RGB (CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65) |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 Supported |
| Deep Color | Up to 16-bit (1080p), up to 12-bit (4K), up to 10-bit (8K) |
| Downscaling (Output 1) | 8K to 4K or 8K/4K to 1080p |
| HDCP | HDCP 2.3 and earlier |
| Audio: | |
| Audio Formats Supported HDMI | PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby True HD, DTS-HD Master Audio, DTS-X, Dolby Atmos |
| Audio Formats Supported Extracted (TOSLINK) | LPCM up to 5.1 96KHz 24 Bit, Dolby Digital 5.1, DTS HiRes Audio |
| Audio Formats Supported Extracted (2CH Port) | PCM 2 CH |
| Distance: | |
| HDMI In/Out (4k60 4:4:4) | UP TO 50 FEET (USING BULLET TRAIN HDMI) |
| HDMI In/Out (W/ AOC Cable) (4k60 4:4:4) | UP TO 130 FEET (USING BULLET TRAIN AOC) |

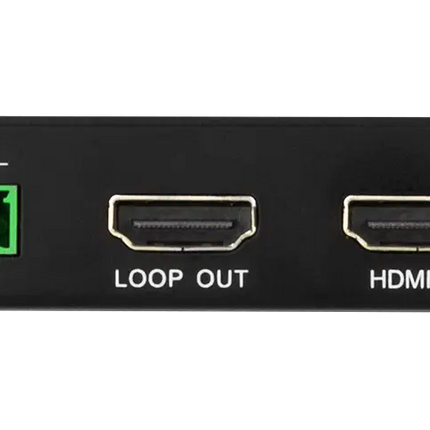

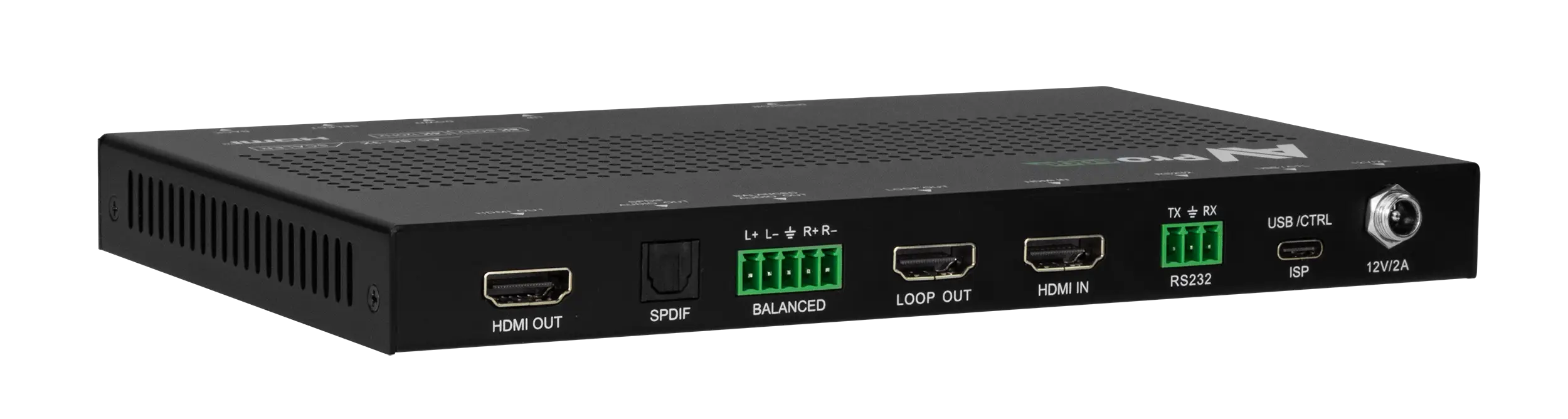

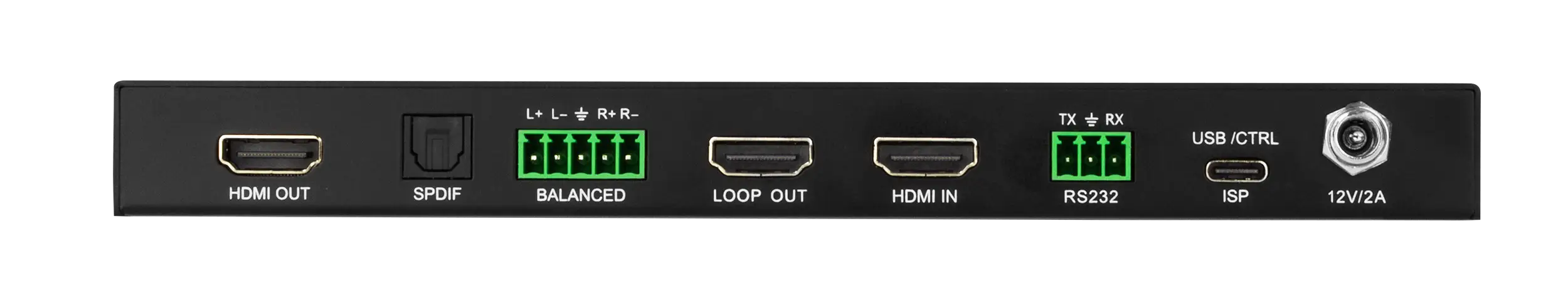

| Ports: | |

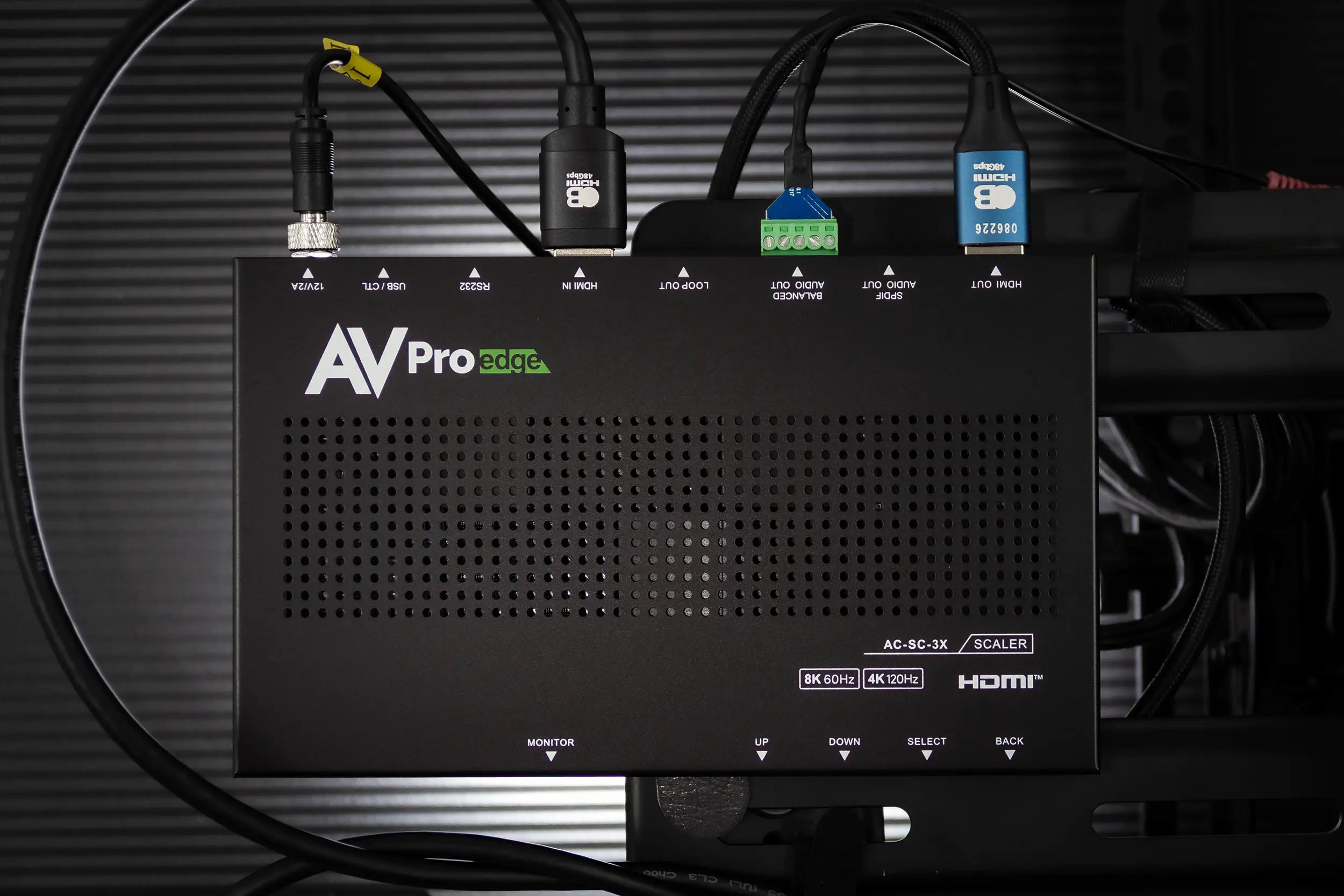

| HDMI | 3x Type-A 19-pin, female |

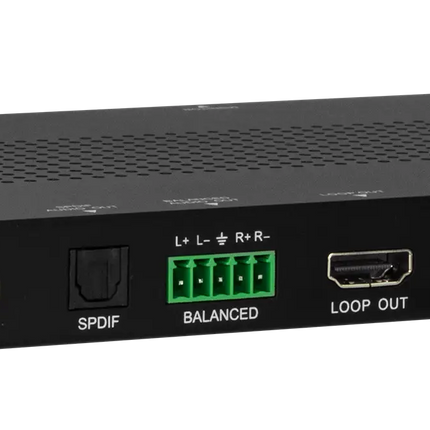

| Audio (Extracted Digital) | TOSLINK |
| Audio (Extracted Analog) | 5 PIN Terminal Block (Balanced) |
| RS-232 | 3-pin Euroblock |
| ISP/CTL | USB Type-C |
| Power In (TX & RX) | Barrel Connector |
| Environmental: | |
| Operating Temperature | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity Range | 5-90% RH (No Condensation) |
| Power: | |
| Power Consumption (Total) | 20 W Max |
| Power Supply | Input: AC 100-240V ~ 50/60Hz |
| Dimensions: | |
| Dimensions (Unit Only Depth/Width/Height) | mm: 120.65 X 203.2 X 20.6375 in. 4.75 X 8 X .8125 |
| Dimensions (Packaged Depth/Width/Height) | mm: 152.4 x 268.2875 x 73.025 in. 6 x 10.563 x 2.875 |
| Weight (Single Unit) | 1.34 lbs. (0.61 kg) |
| Weight (Packaged) | 2.113 lbs. (0.96 kg) |
| Regulatory | CE/FCC |
| Product Warranty | 10 Years |
*Specifications are subject to change without notice. Mass & dimensions are approximate * *Distances achieved with Bullet Train HDMI and AOC cables | |
- 1x AC-SC-3X
- 1x 12V 2A power supply
- 1x 3-pin terminal block connector (RS-232)
- 1x terminal block connector (balanced audio)
- 1x set of mounting brackets with hardware
