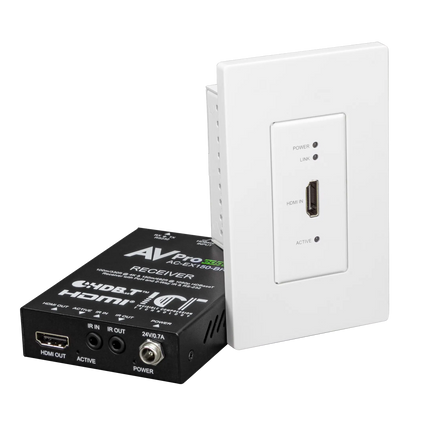

ConferX Long Distance 150m HDMI Wall Plate Extender Kit
- VendorAVPro Edge
ConferX Long Distance 150m HDMI Wall Plate Extender Kit
- VendorAVPro Edge
- Key Benefits
- Specs
- Resources
- In the Box

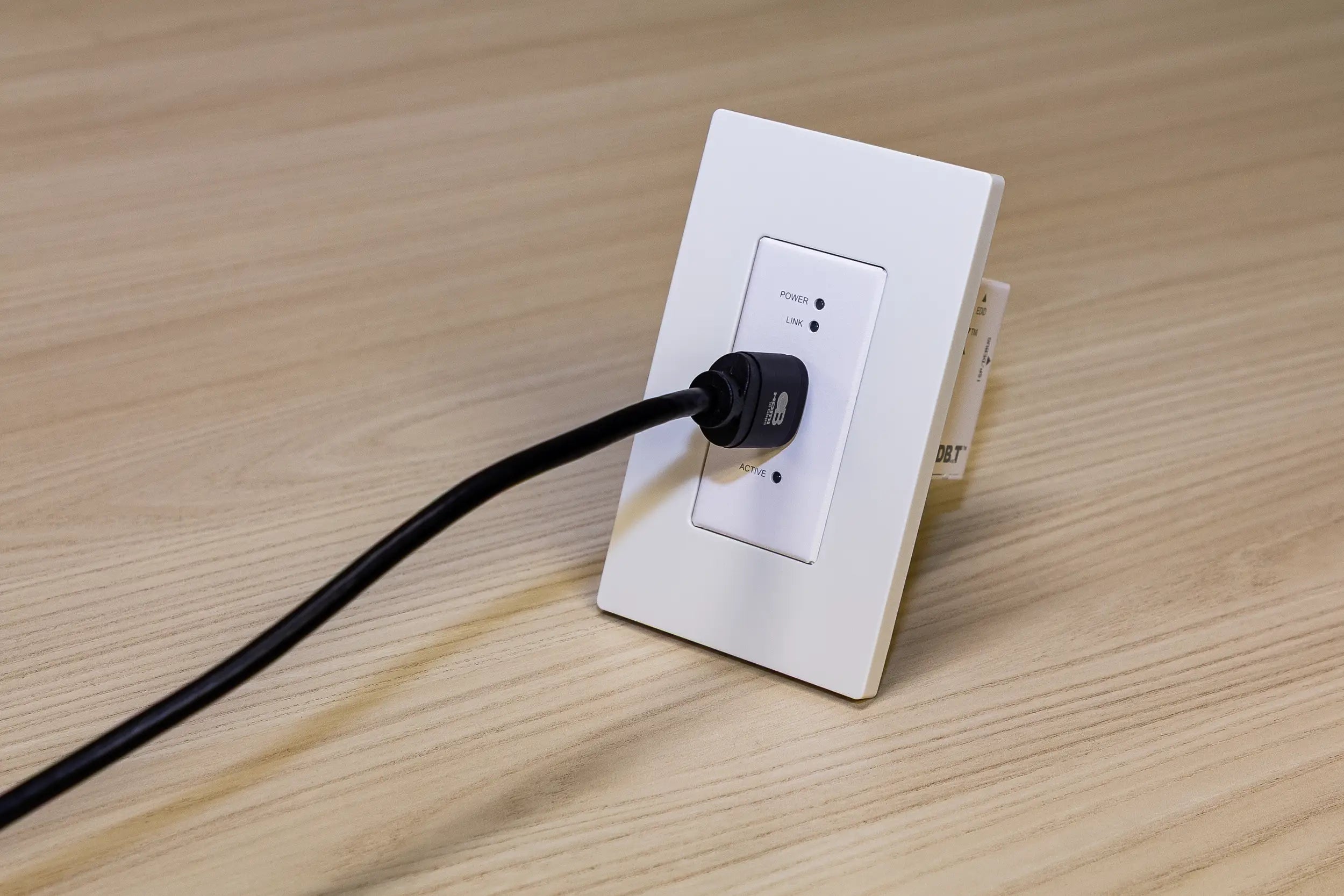

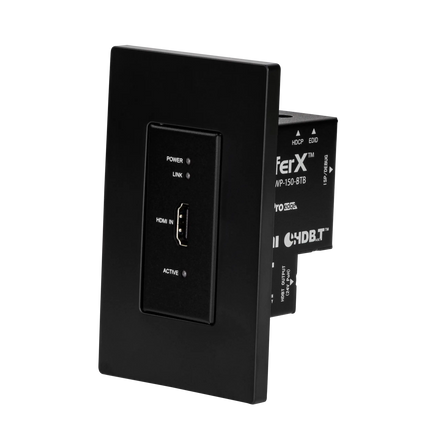

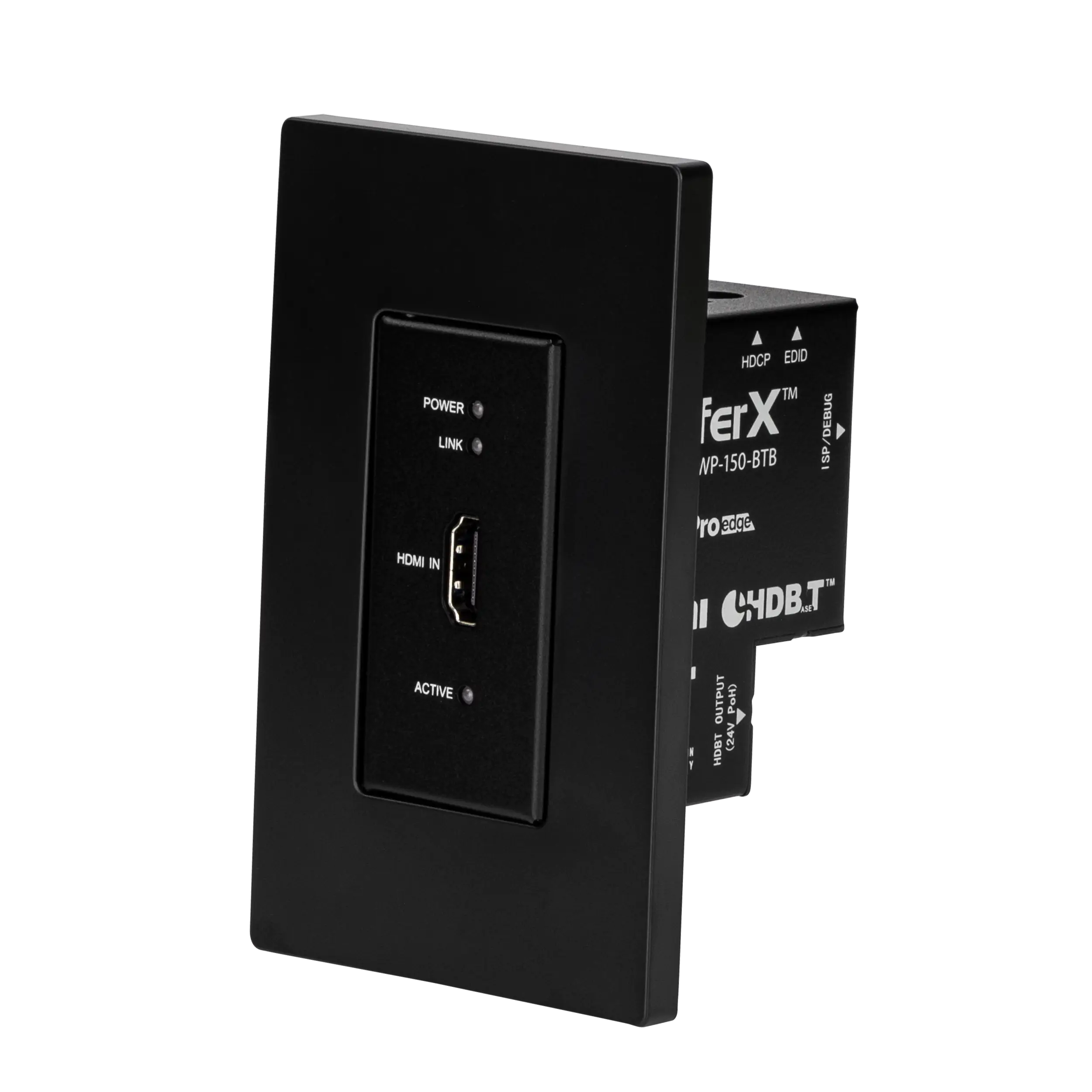

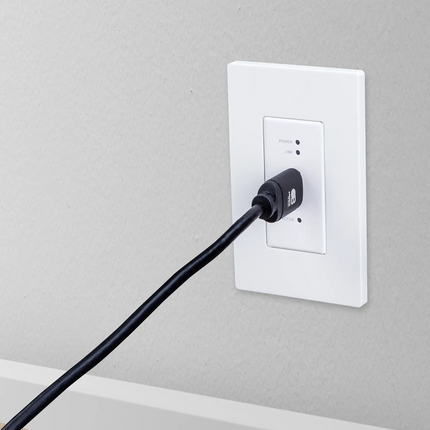

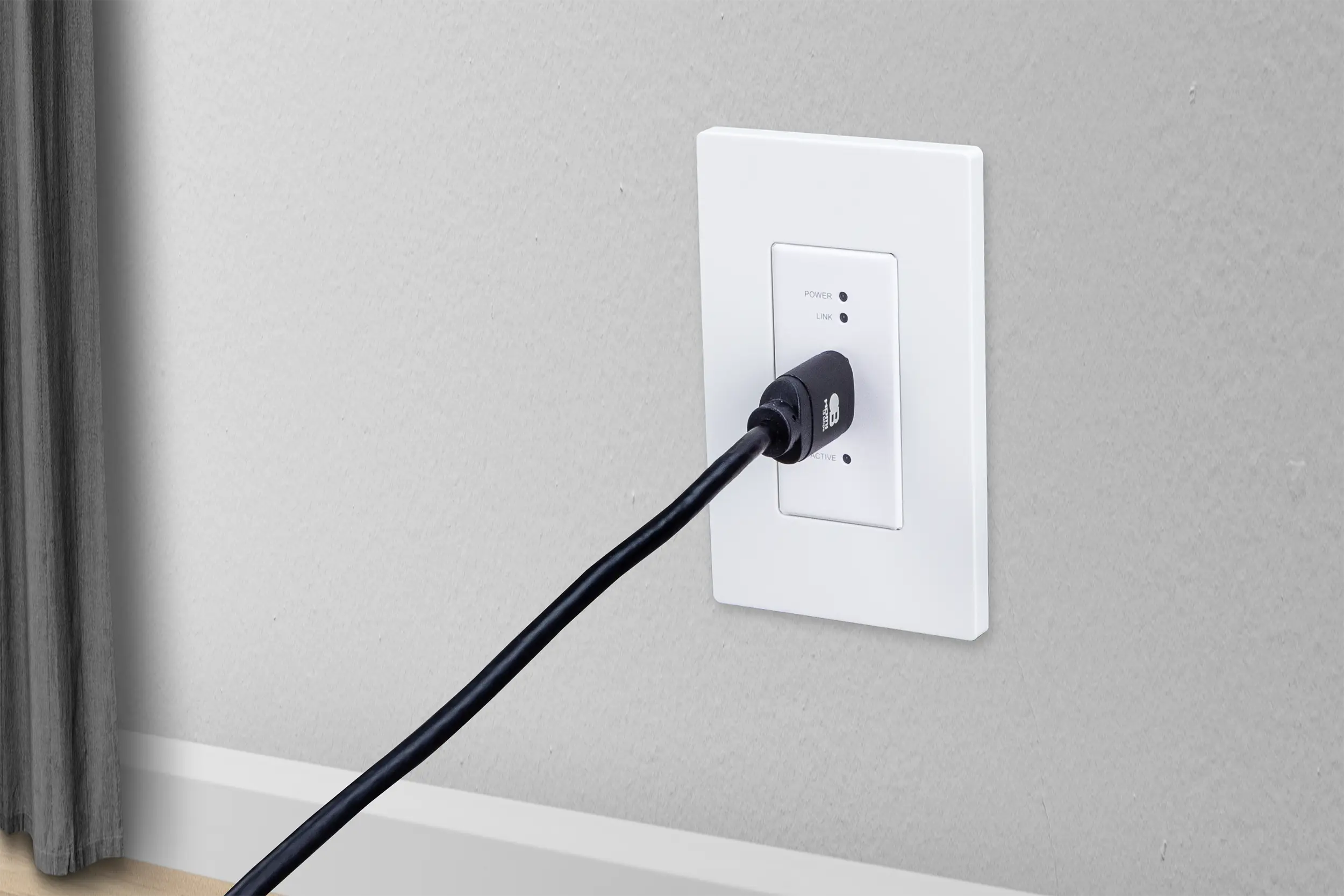

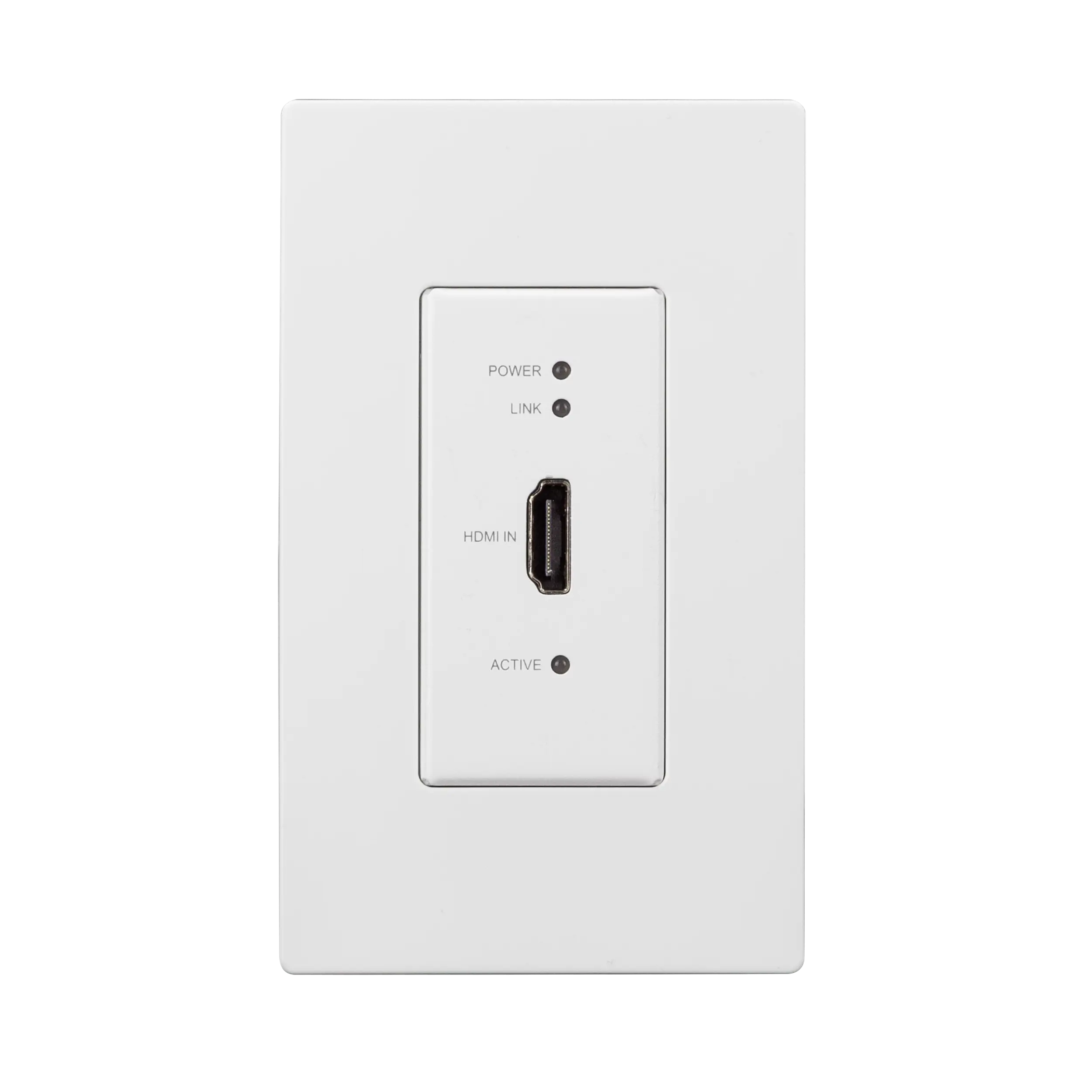

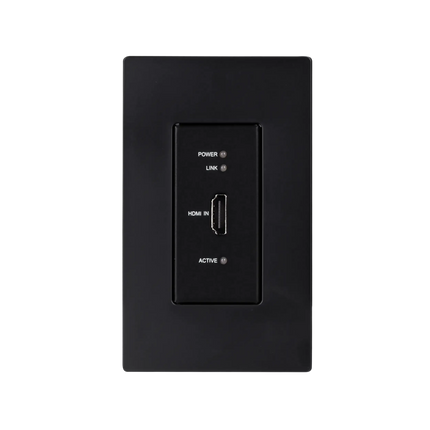

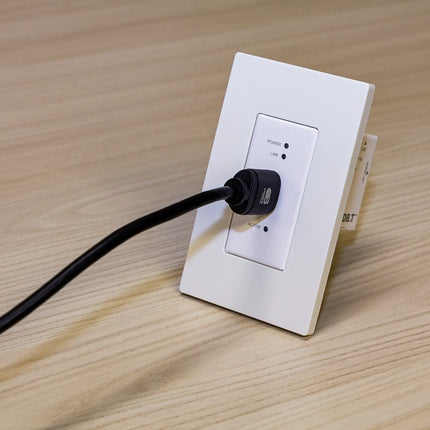

- Wall plate form factor with HDMI input for clean retrofit installations
- 150-meter 1080p / 100-meter 4K UHD extension capability
- Works with legacy CAT5e infrastructure including splices and punch-down blocks
- Supports 18 Gbps 4K HDMI 2.0 with HDR10 and Dolby Vision
- AVPro Edge ICT delivers artifact-free images over challenging infrastructure
- 4K to 1080p downscaling for mixed-resolution systems
- Configurable EDID management for stable signal delivery
- Bidirectional RS-232 and IR control pass-through
- PoH (Power over HDBaseT) from single power supply
- 10-year advanced-replacement warranty
| Video | |
| Video Resolutions | Up to 4K 60 Hz 4:4:4 |
| VESA Resolutions | Up to DCI 4K (4096x2160) |
| HDR Formats | Dolby Vision, HDR10, HDR10+, HLG |
| Color Space | YUV (Component), RGB (CSC: Rec. 601, Rec. 709, ITU R-BT.2020, DCI-P3-D65) |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Deep Color | Up to 16-bit (1080p) Up to 12-bit (4K) |
| Audio | |
| Audio Formats Supported HDMI | PCM 2.0-Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos |
| Distance | |
| HDBaseT (CAT) Distance (4K) | 100 meters / 330 feet (CAT6a) |
| HDBaseT (CAT) Distance (1080P) | 150 meters / 492 feet (CAT6a) |
| HDMI Lead In/Out | Up to 50 feet (Using Bullet Train HDMI) |
| HDMI Lead In/Out (W/ AOC Cable) | Up to 130 feet (Using Bullet Train AOC) |
| Other | |
| Bandwidth | 18 Gbps |
| CEC | Yes |
| HDCP | HDCP 2.3 and earlier |
| Ports | |
| HDMI (TX & RX) | Type A |
| HDBaseT | RJ45 w/ PoH |
| RS-232 (RX Only) | 3-Pin Terminal Block |
| Power (TX & RX) | TX: RJ45 w/ PoH RX: Barrel Type |
| Environmental | |
| Operating Temperature | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity Range | 5-90% RH (No Condensation) |
| Power | |
| Power Consumption (Total) | 16.8 W Maximum |
| Power Supply - Receiver | Input: AC 100-240V ~ 50/60 Hz Output: DC 24V at 0.7 A |
| Physical / Dimensions | |
| Dimensions without faceplate (TX Only Height/Width/Depth) | mm: 53.98 x 31.8 x 53.98 inches: 2.13 x 1.25 x 2.13 |
| Wall space | Single-gang |
| Compatible Box Types | Mud Rings, Stud Mount, Clamp Mount, Metal & Plastic Boxes, LV Boxes |
| Dimensions (RX Only Length/Width/Height) | mm: 100.1 x 68.33 x 22.4 inches: 3.94 x 2.69 x 0.88 |
| Dimensions (Packaged Length/Width/Height) (Kit) | mm: 136.53 x 192.1 x 84.14 inches: 5.4 x 7.6 x 3.313 |
| Weight (TX) | 0.47 lbs. (0.213 kg) |
| Weight (RX) | 0.42 lbs. (0.19 kg) |
| Weight (Packaged) | 1.61 lbs. (0.73 kg) |
| *Specifications subject to change without notice. Mass & dimensions are approximate | |

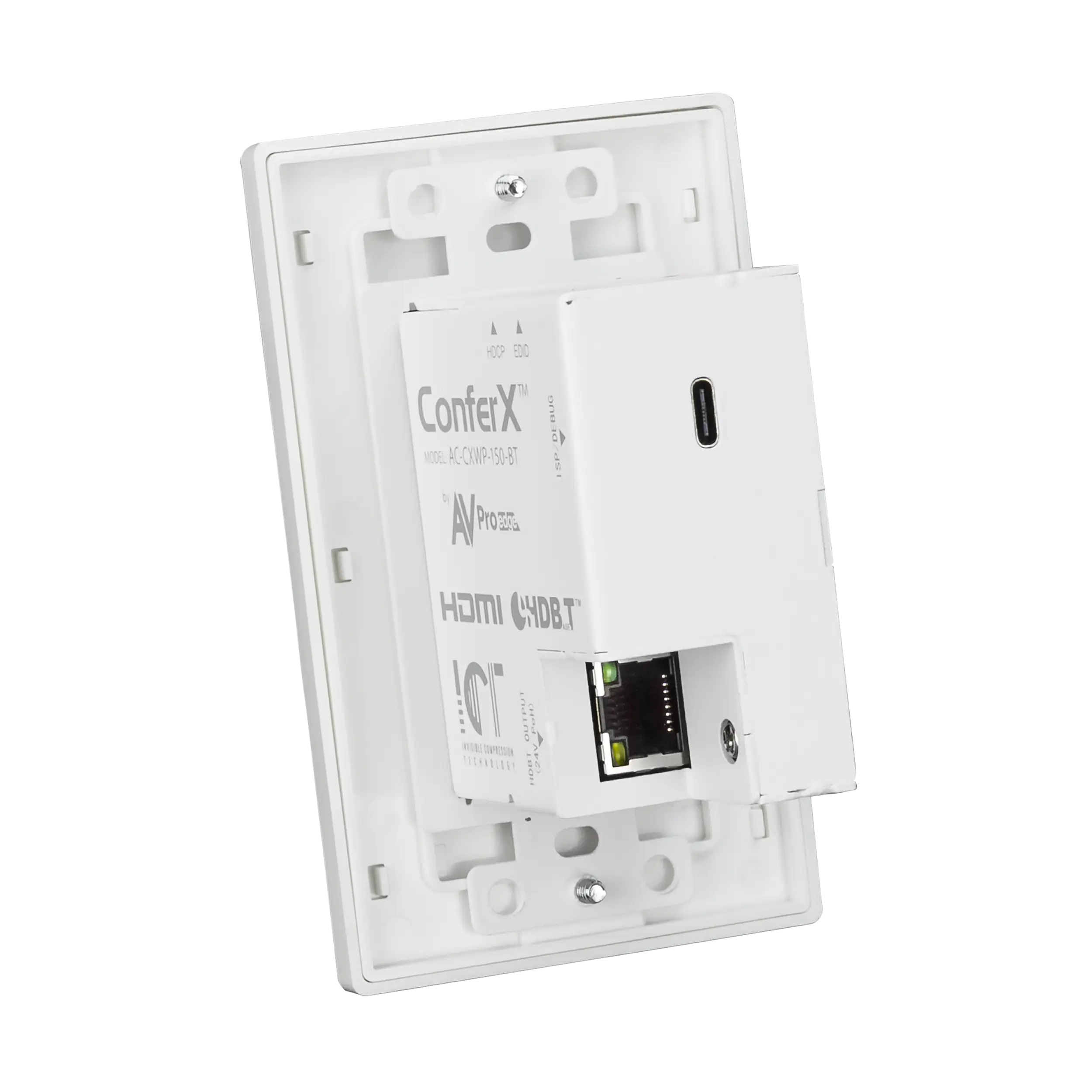

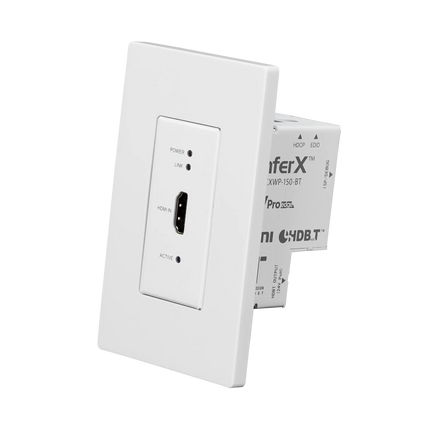

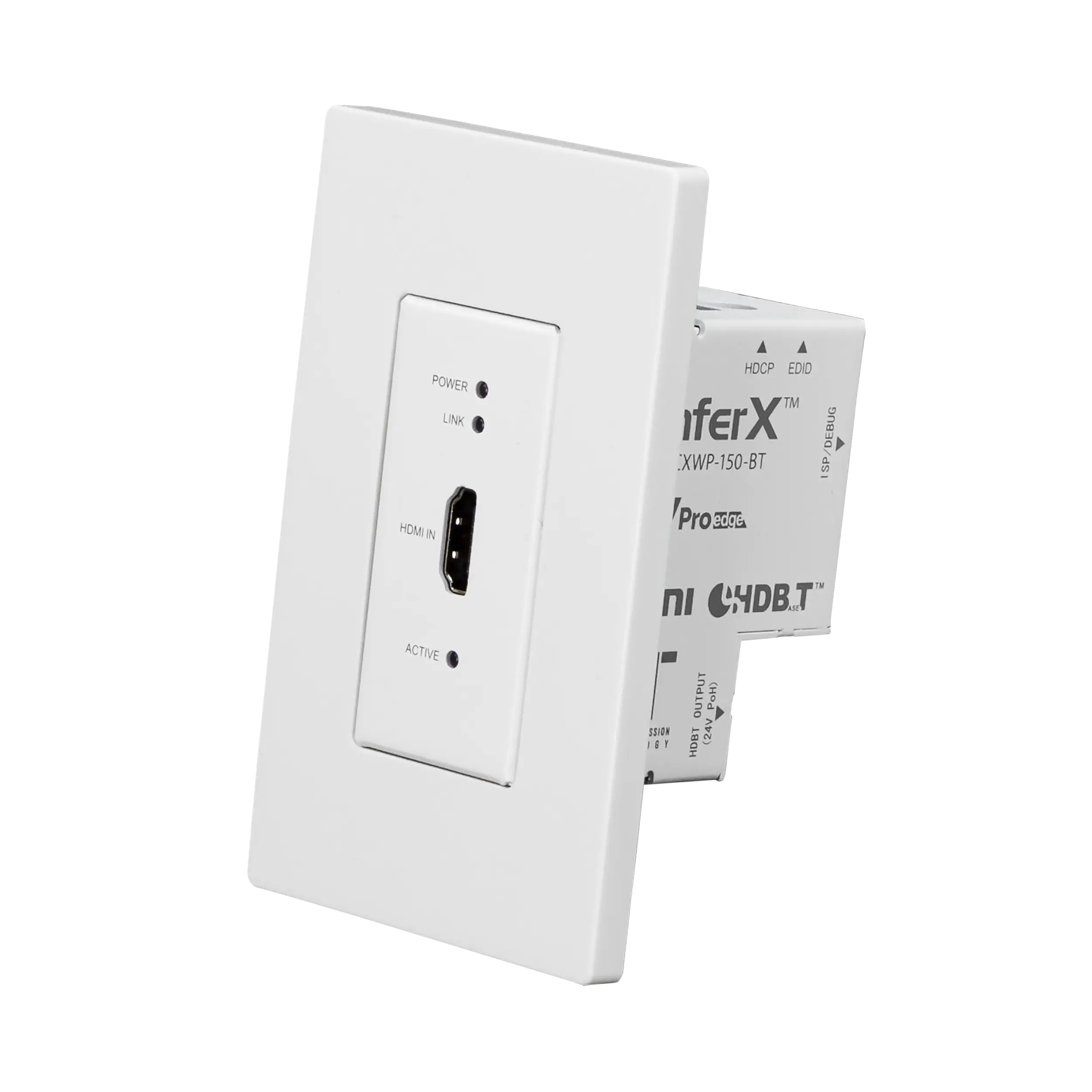

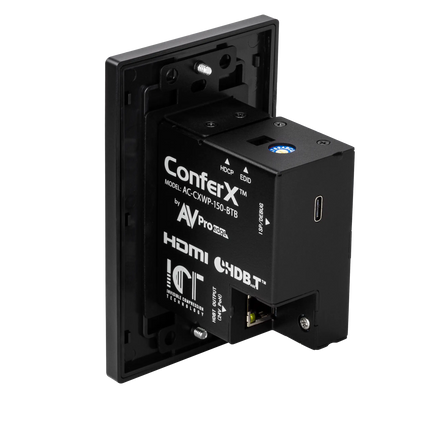

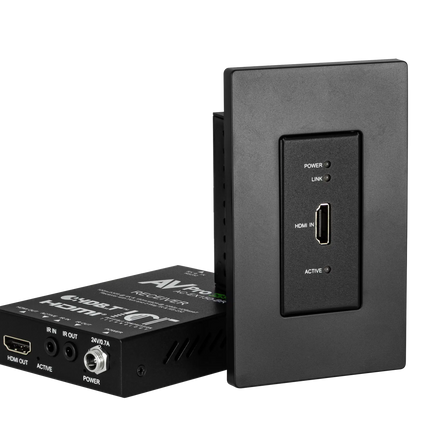

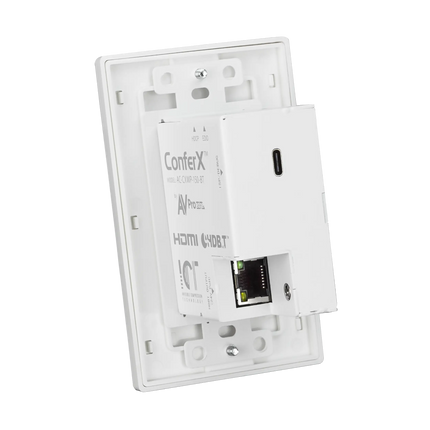

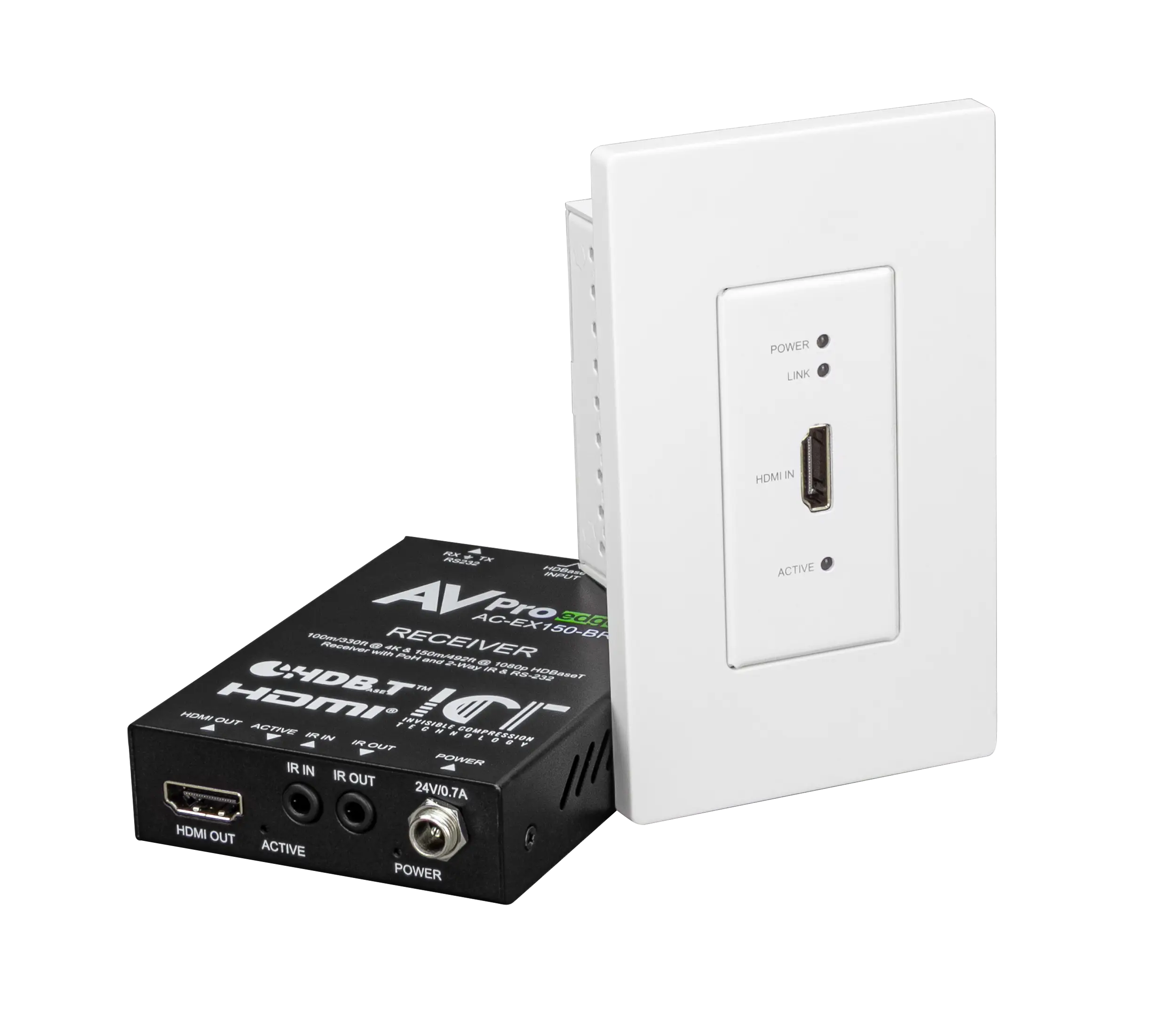

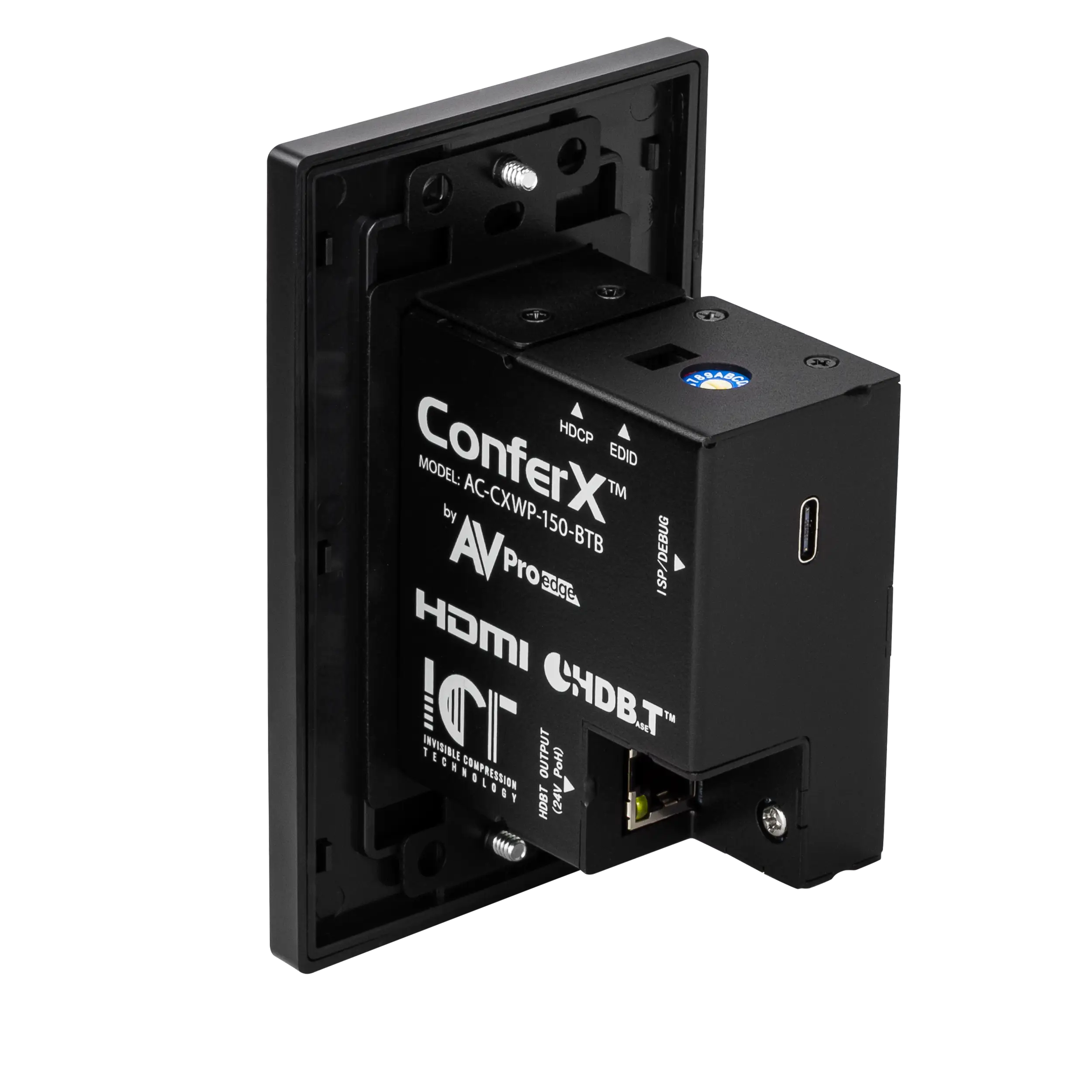

- 1x AC-CXWP-150-BT transmitter wall plate unit
- 1x AC-EX150-BR receiver unit

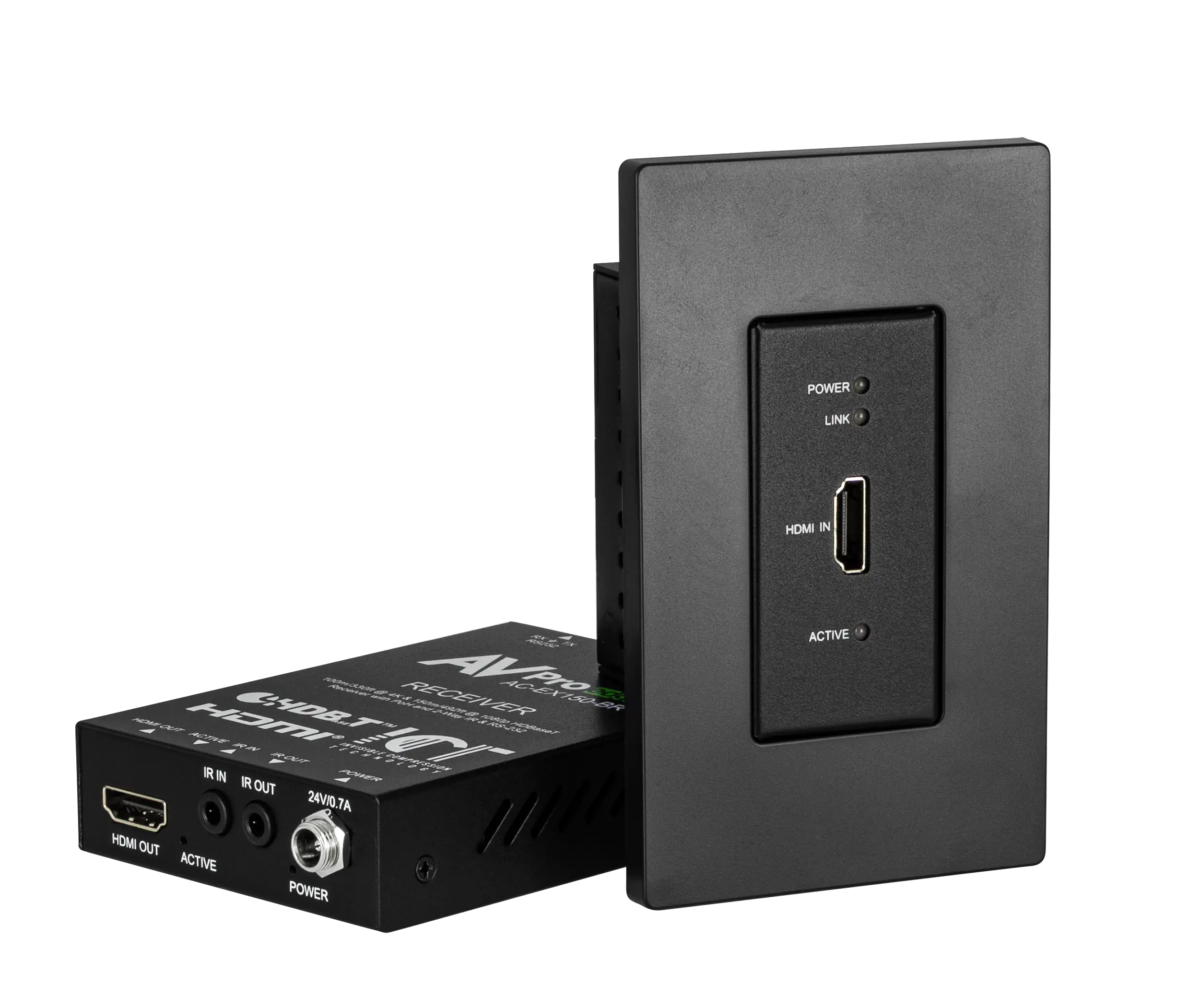

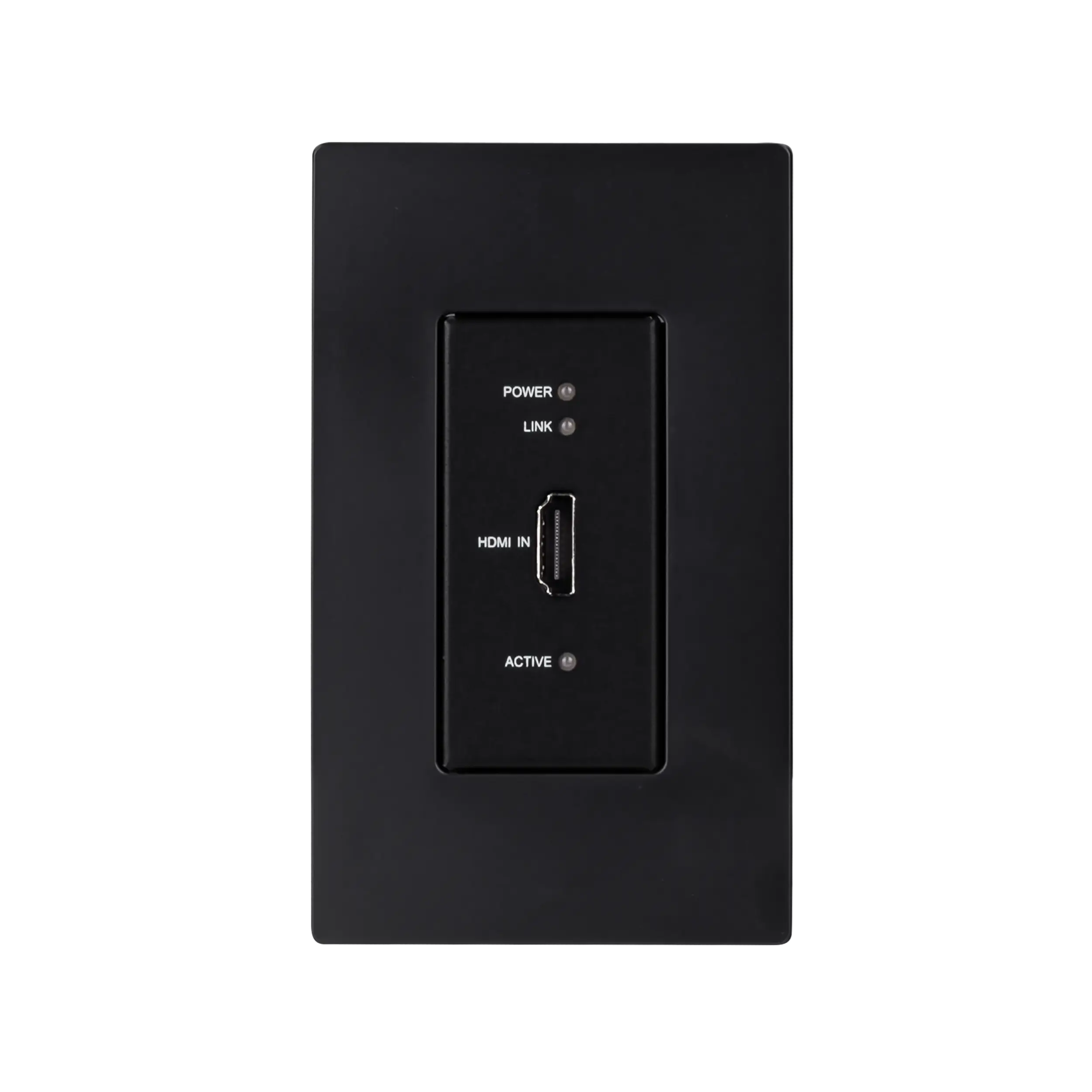

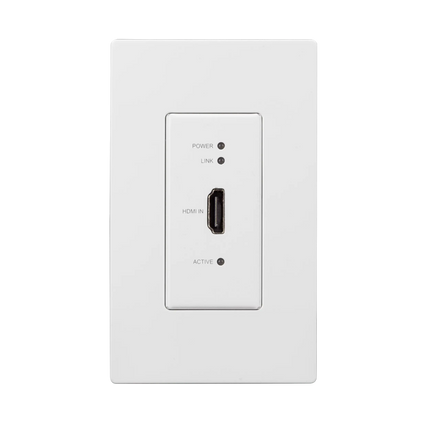

- 1x Decora wall plate cover (White standard, optional Black)
- 1x Mounting bracket pair with screws
- 2x Long electrical mounting screws
- 2x Short electrical mounting screws
- 1x 3-pin Pheonix connector
- 1x USB-C to USB-A cable
- 1x Power Supply
