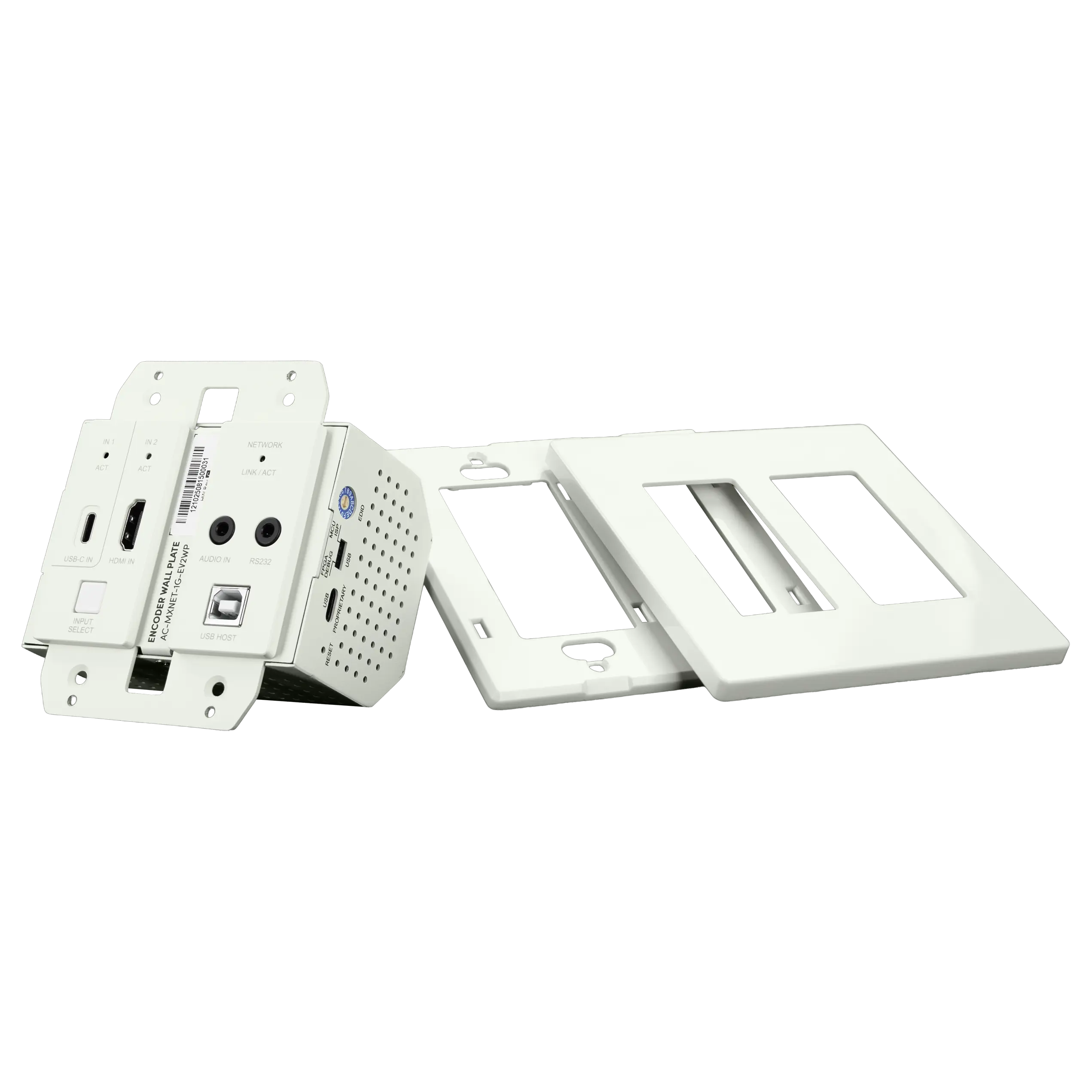

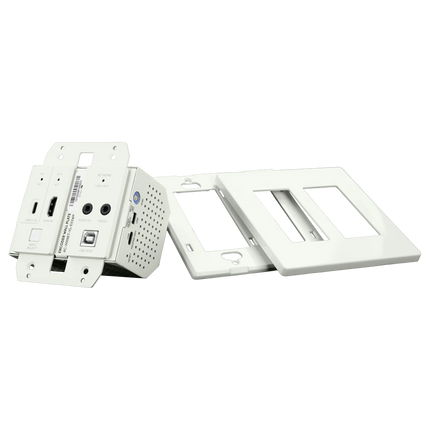

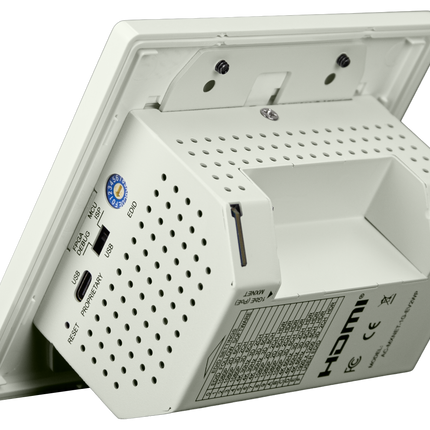

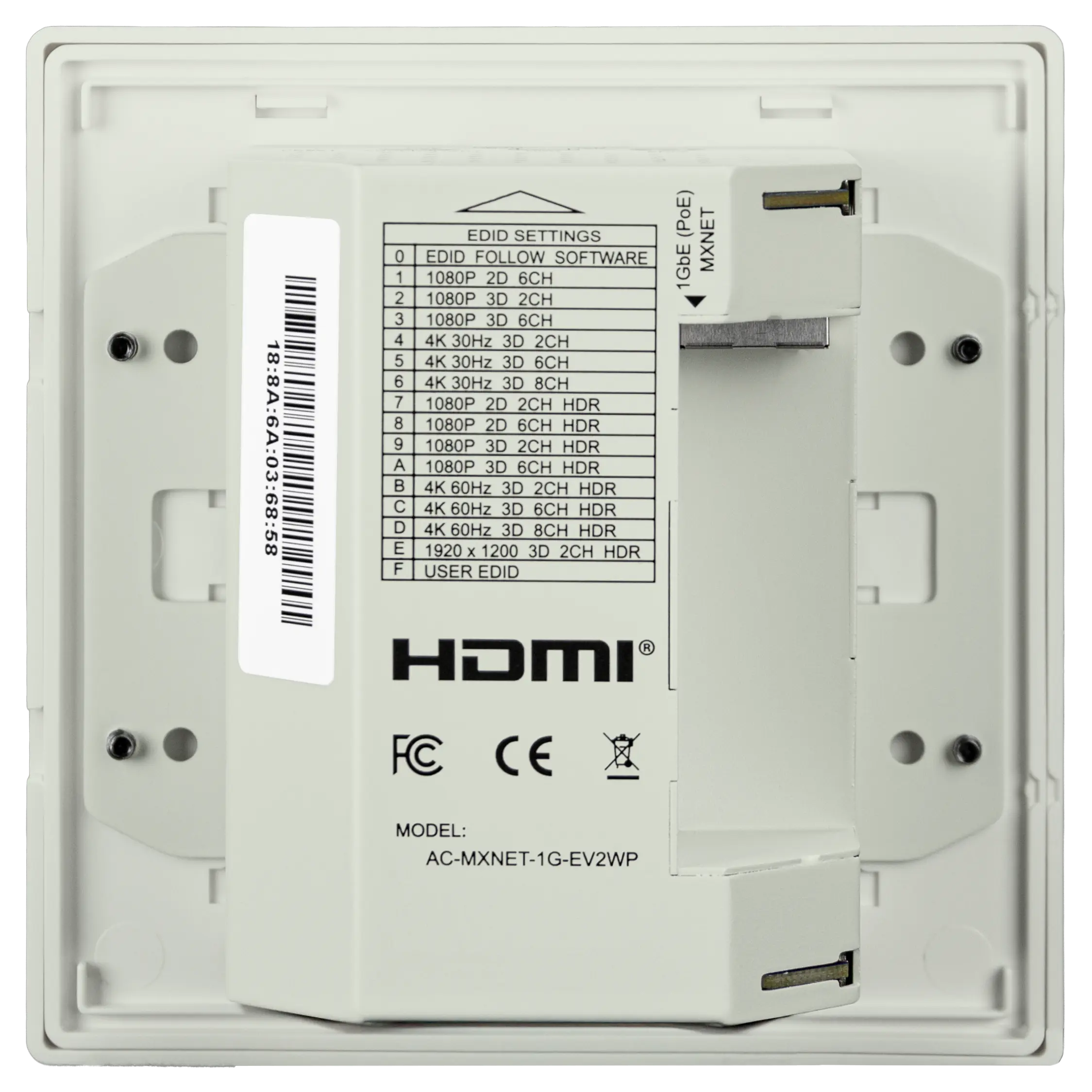

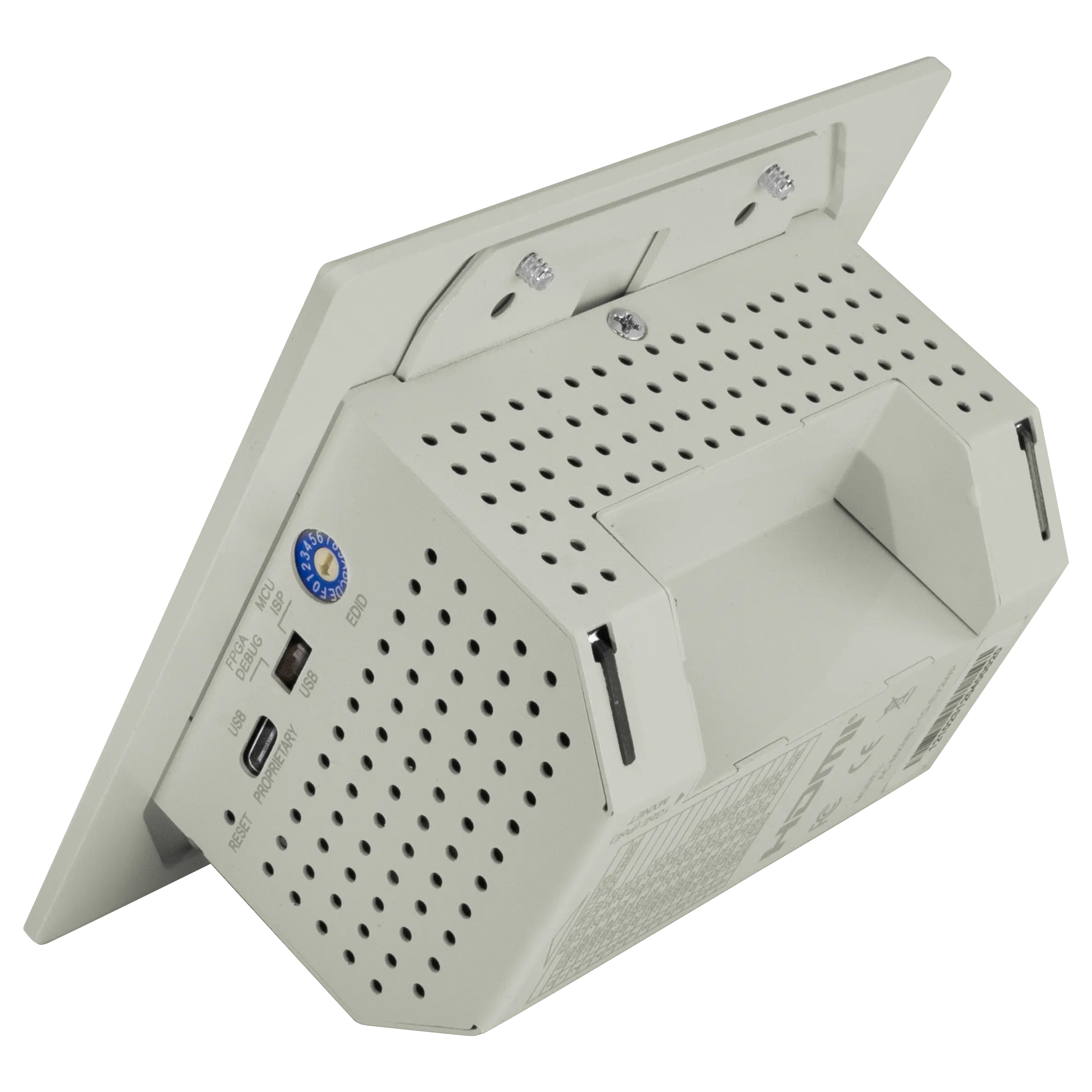

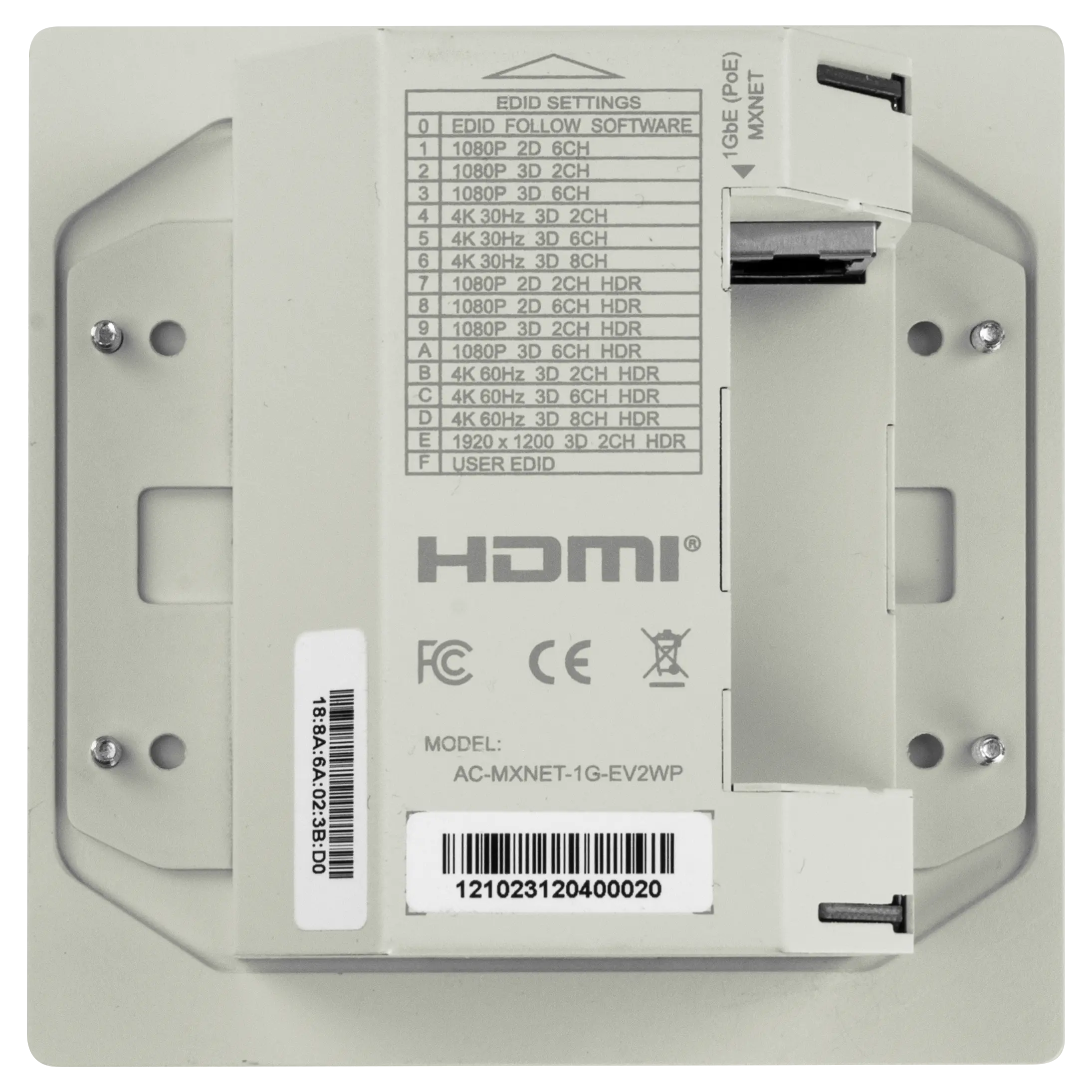

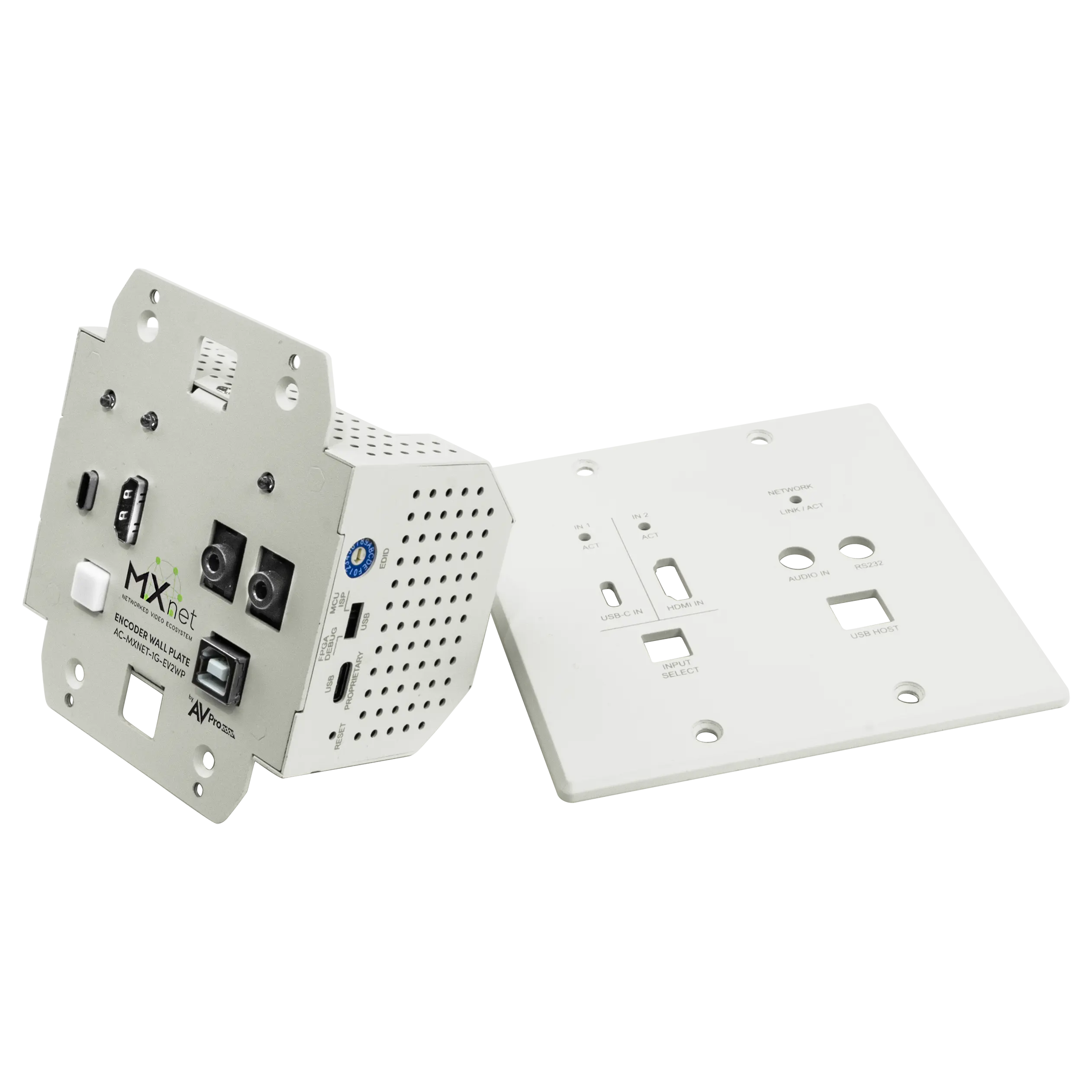

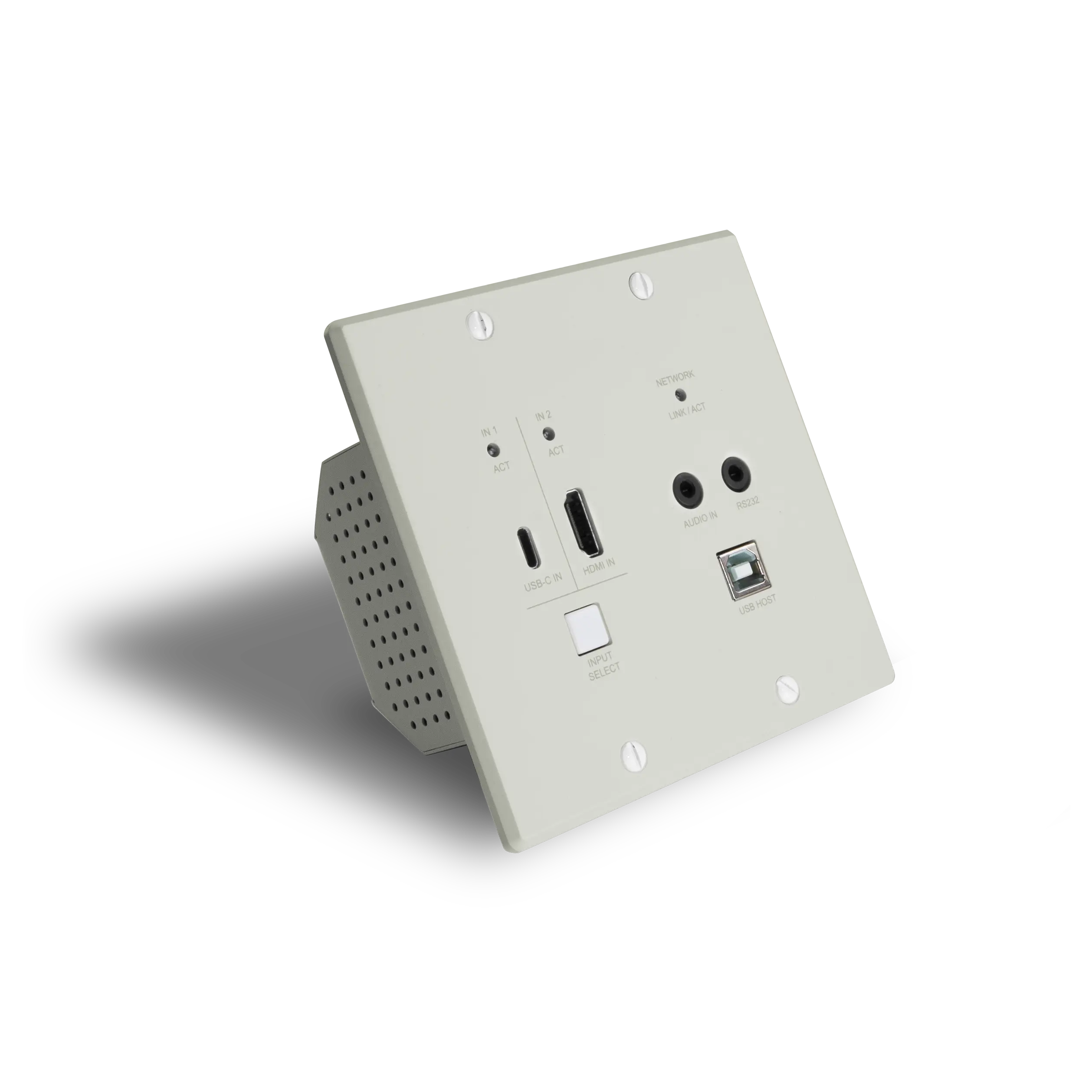

MXnet Evolution II Wall Plate Encoder
- VendorAVPro Edge
4K/60fps Encoding - Capable of encoding up to 4K/60fps 4:4:4 8-bit YCbCr or RGB source content with support for 10/12-bit deep color formats including HDR10, HLG and Dolby Vision.
JPEG 2000 Compression - Excellent at preserving detail to provide a visually lossless video signal with an ultra-low end-to-end latency at less than a single video frame.
Source Previews - All Evolution II encoders can generate a sub-stream for previewing connected sources. These previews can be viewed within the CBOX Mentor user interface or added to a 3rd-party control system UI.
Low Latency Distribution - Evolution II endpoints have an end-to-end system latency of approximately 1 video frame (16ms) with 60Hz video content. Enable ultra-low latency mode (ULLM) to achieve latency as little as 4ms.

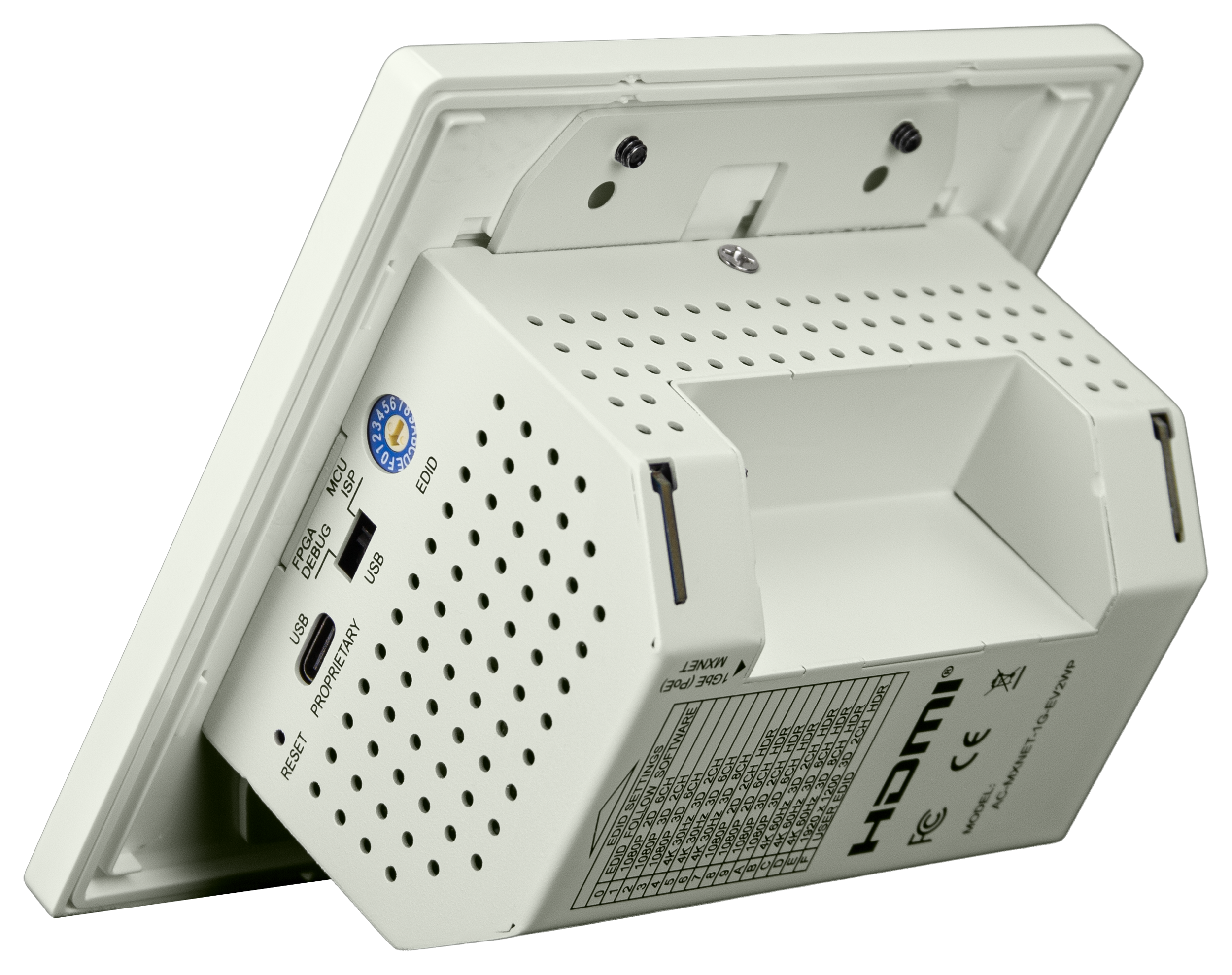

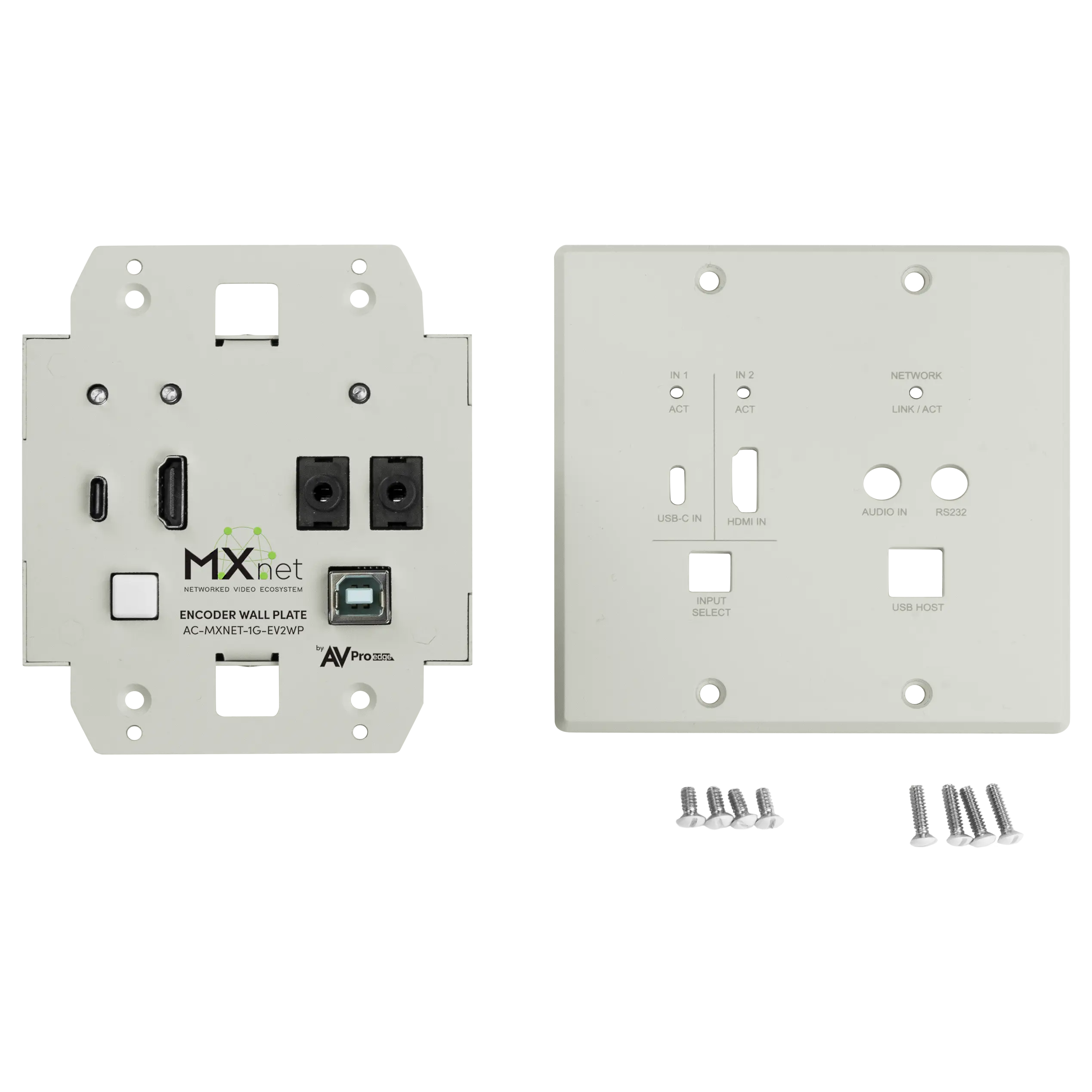

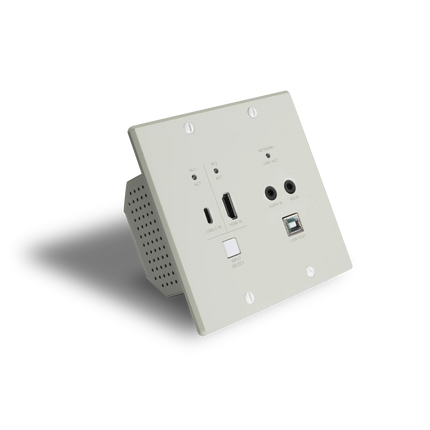

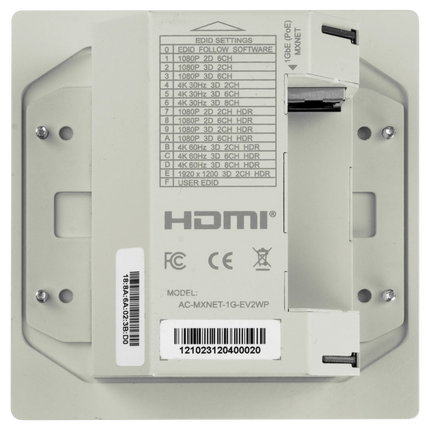

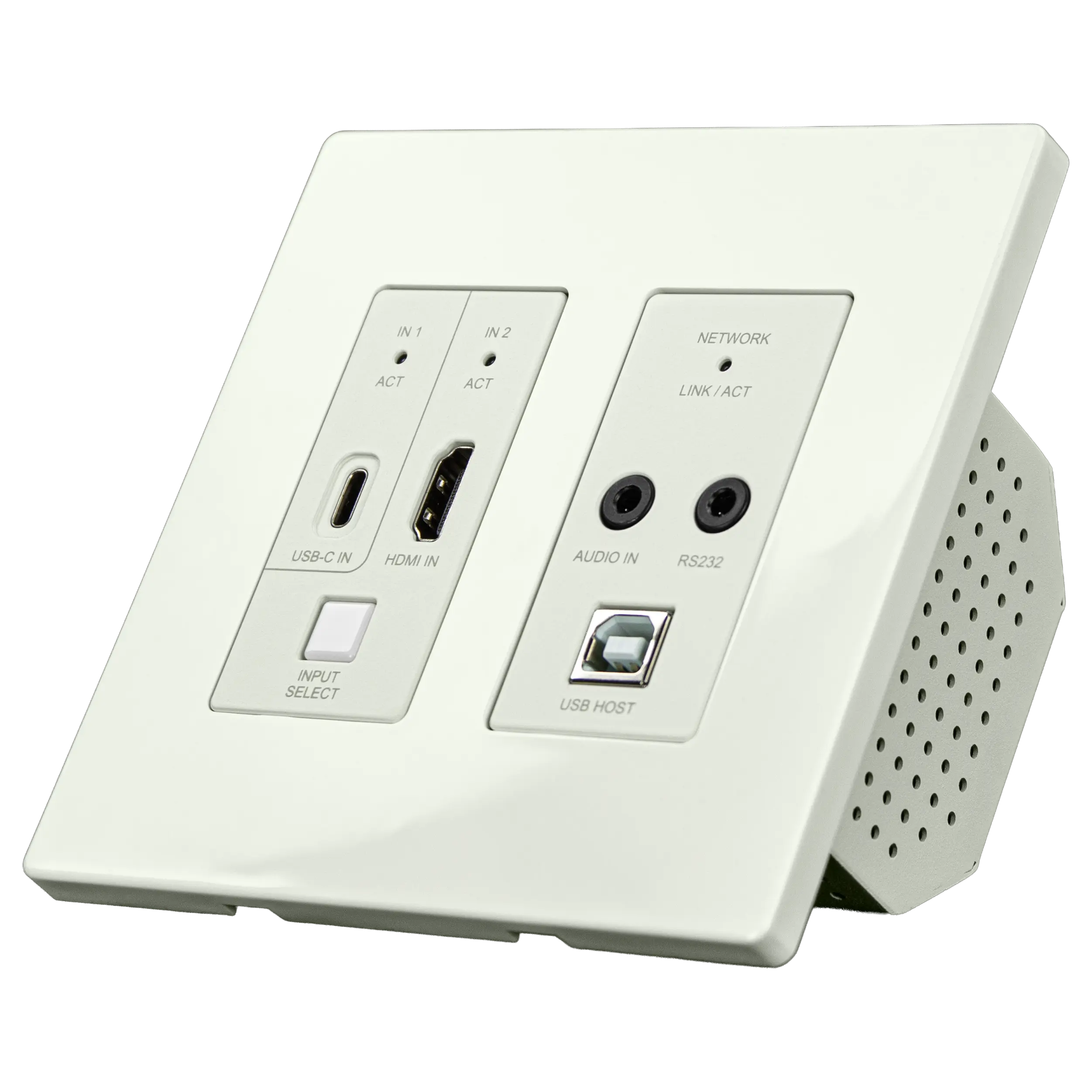

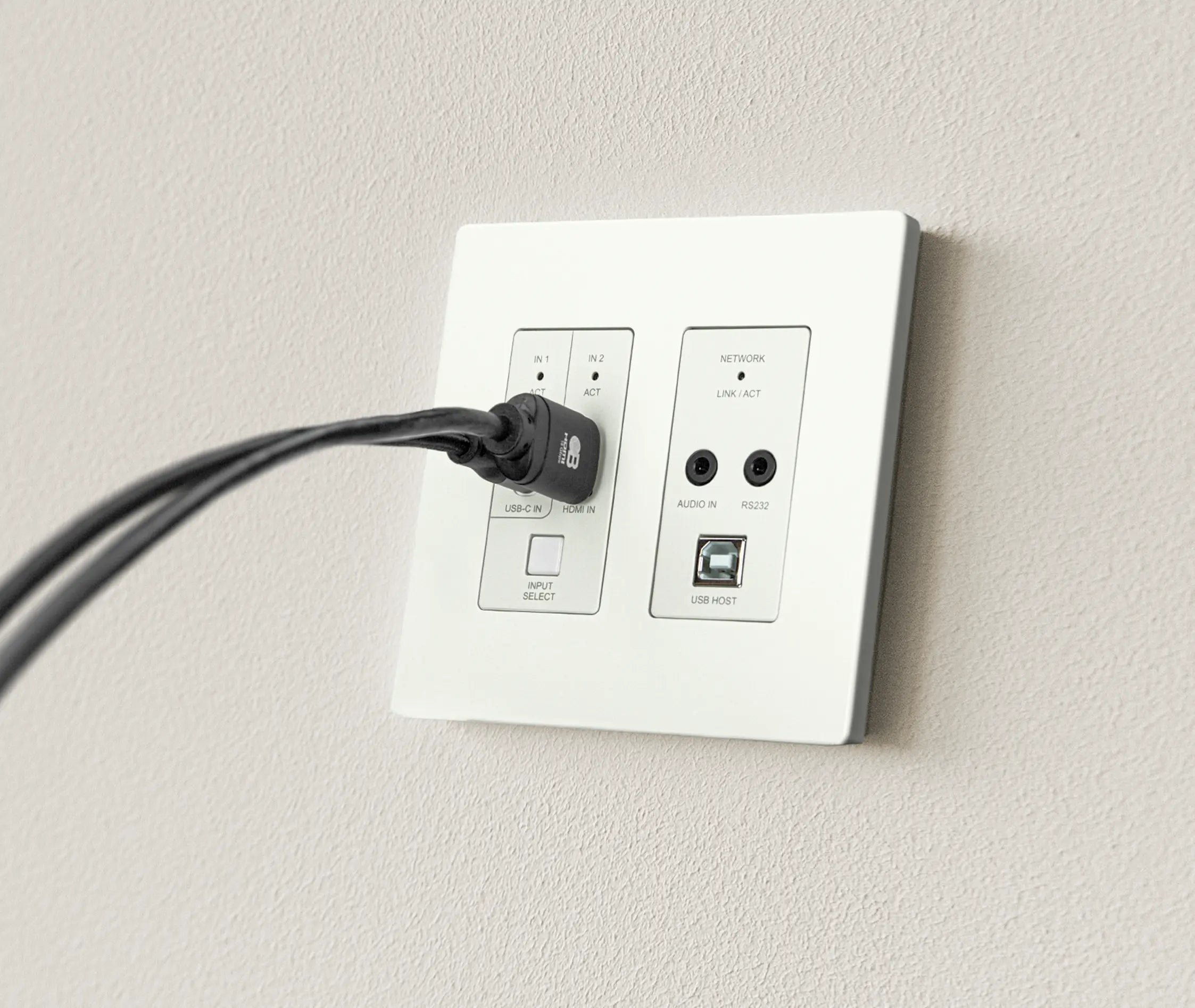

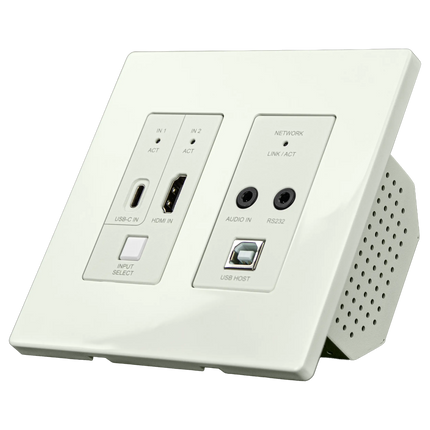

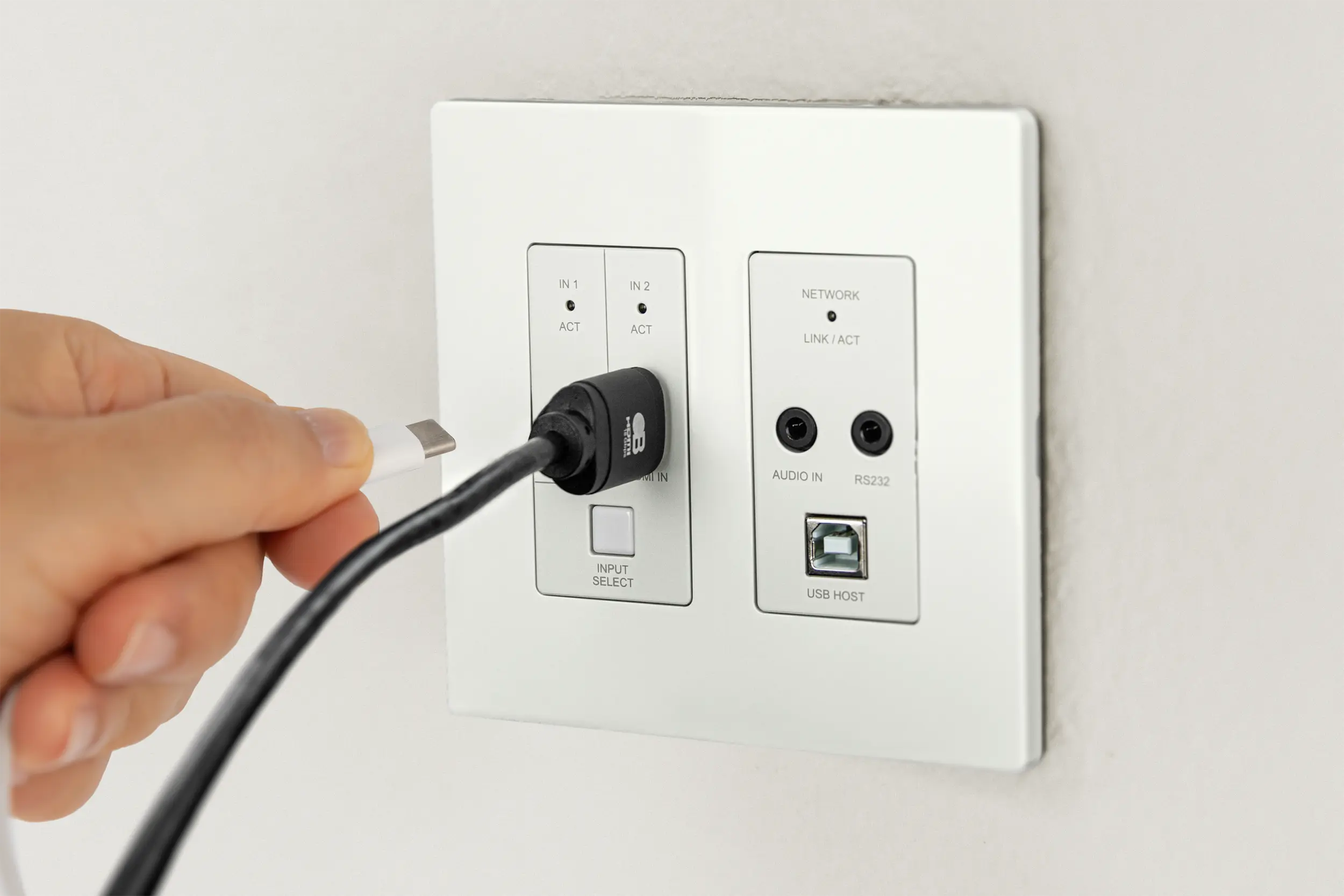

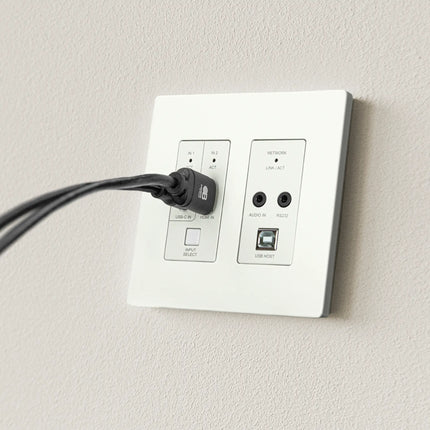

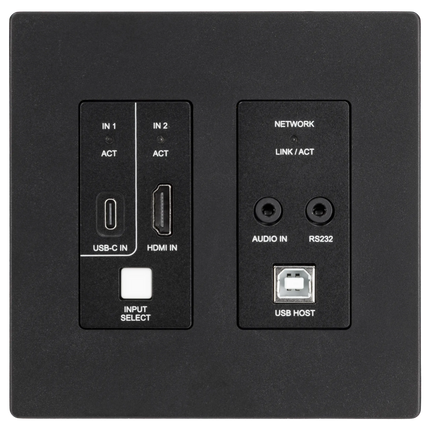

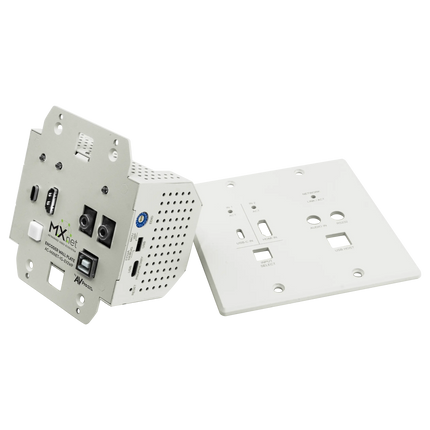

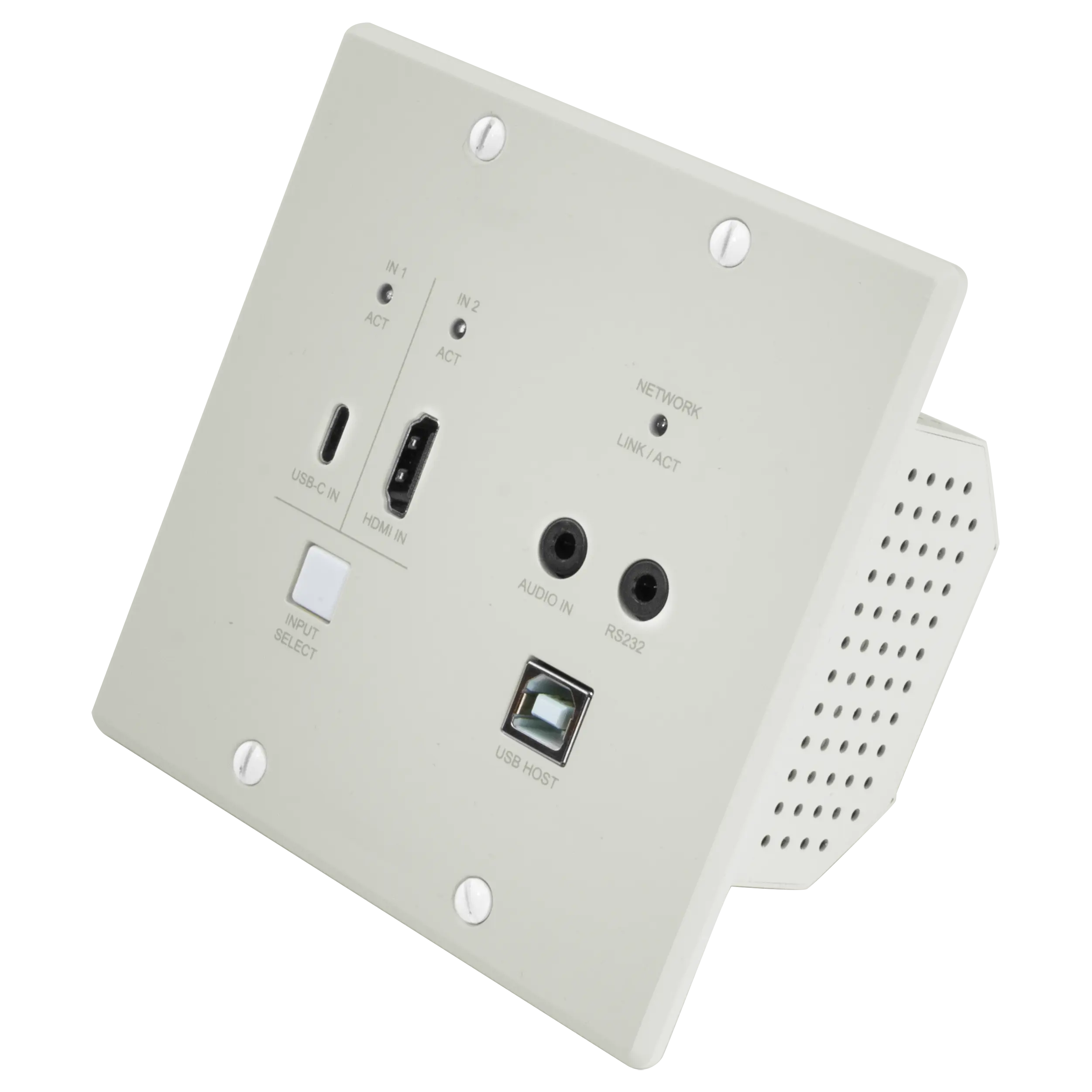

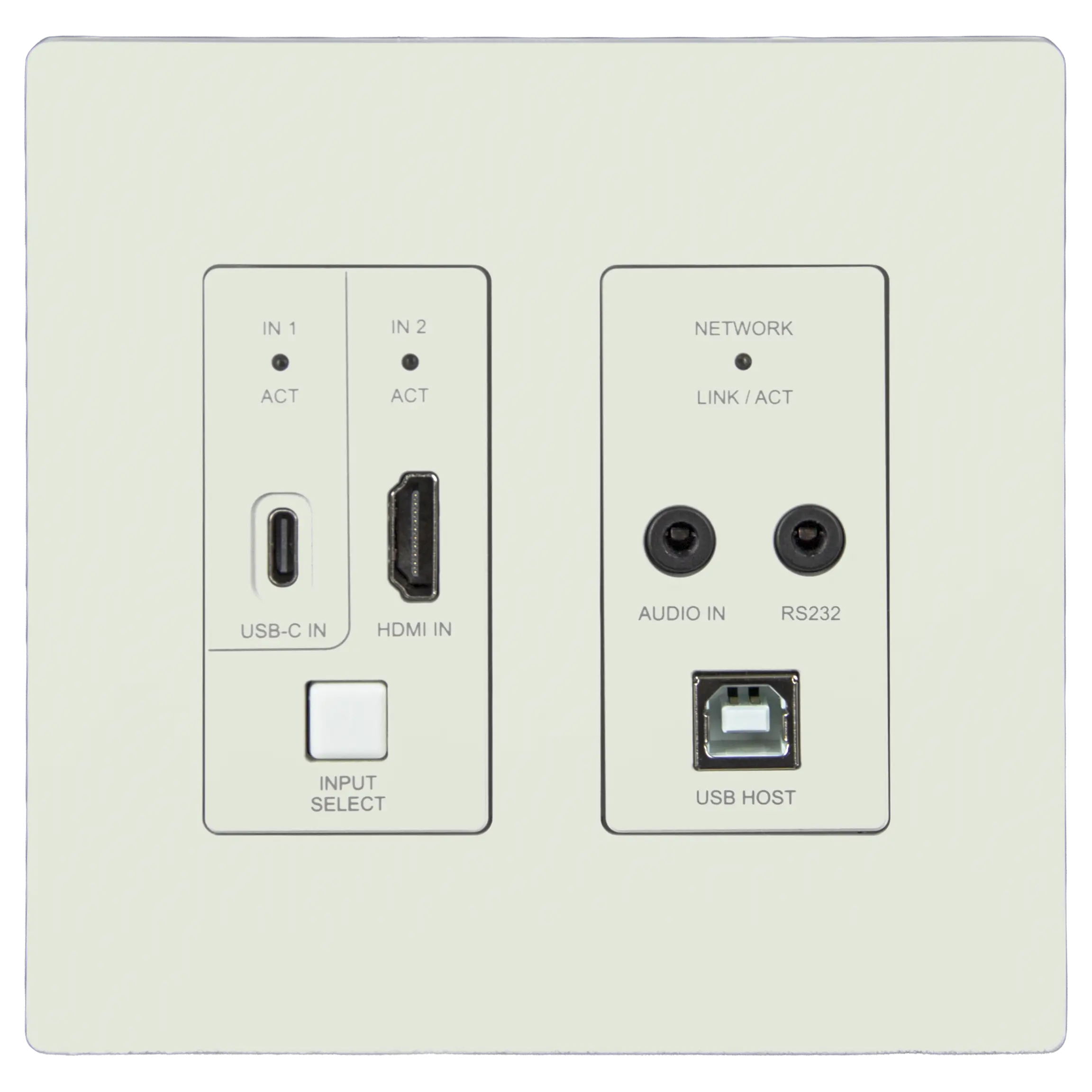

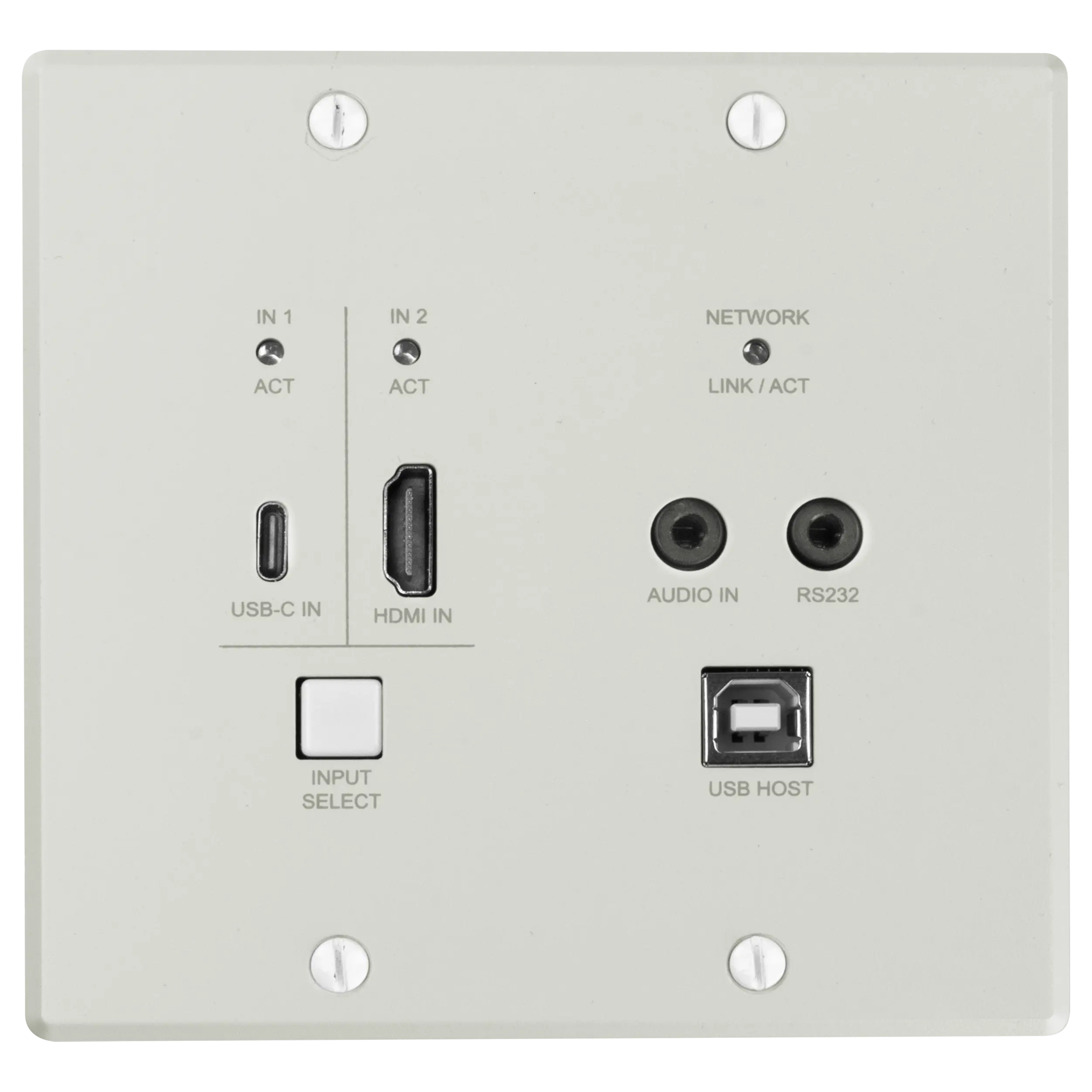

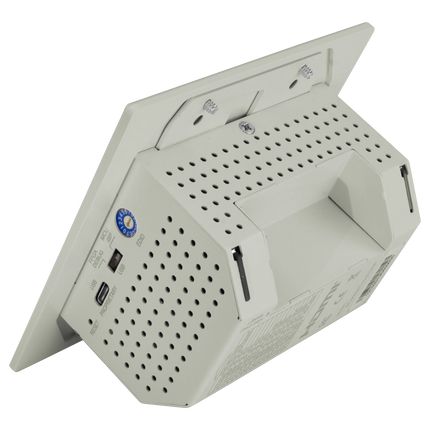

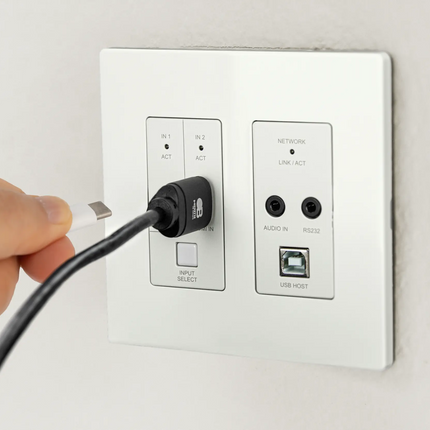

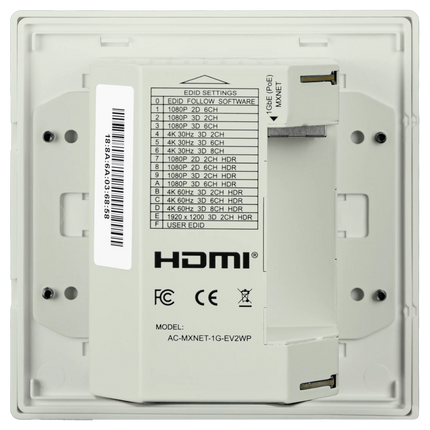

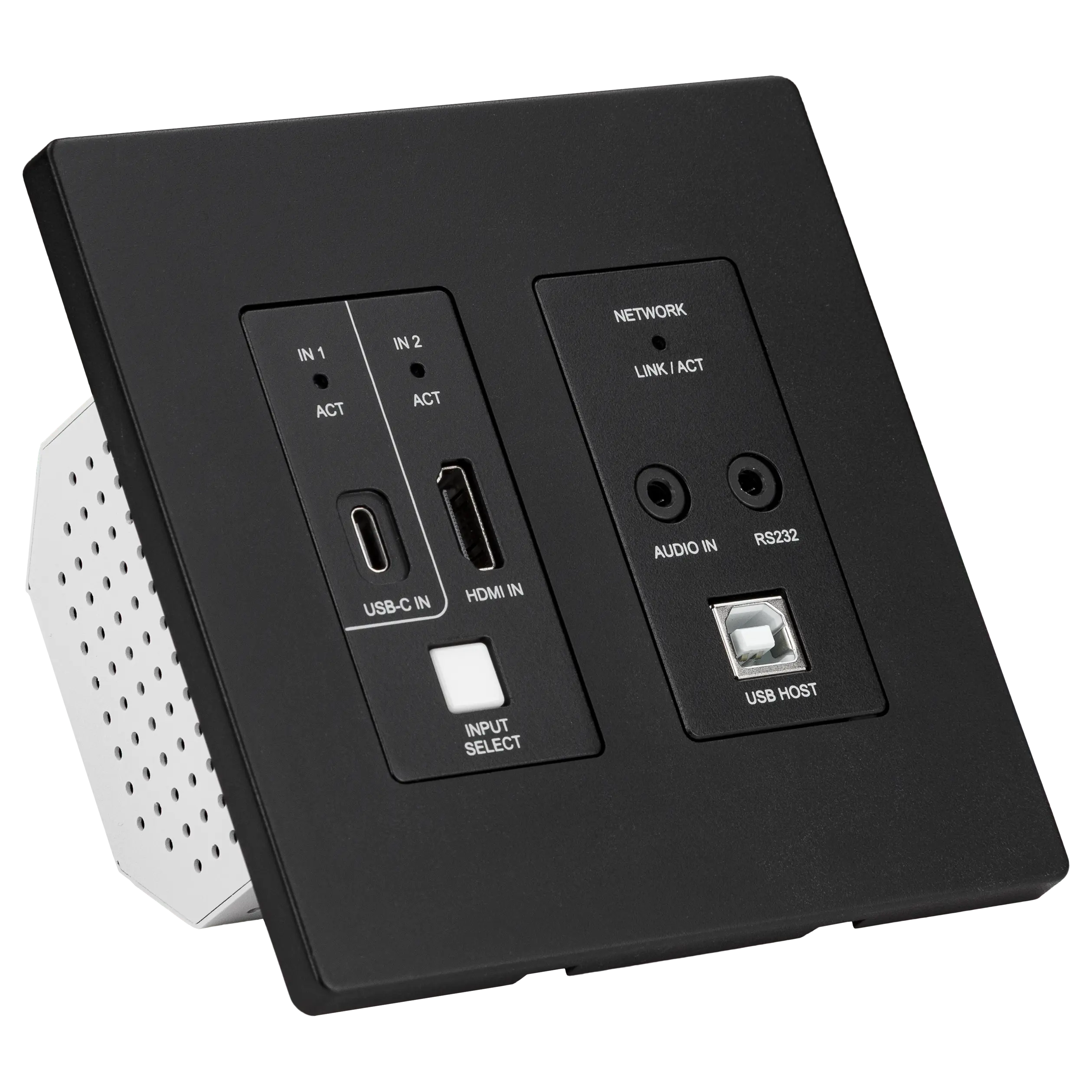

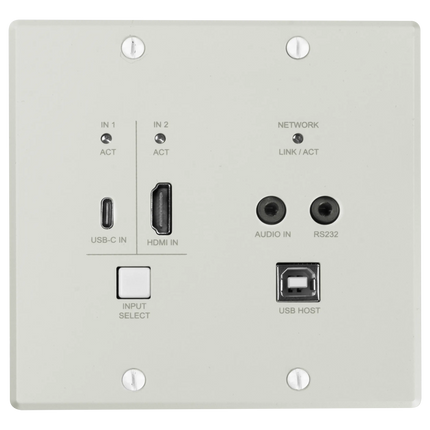

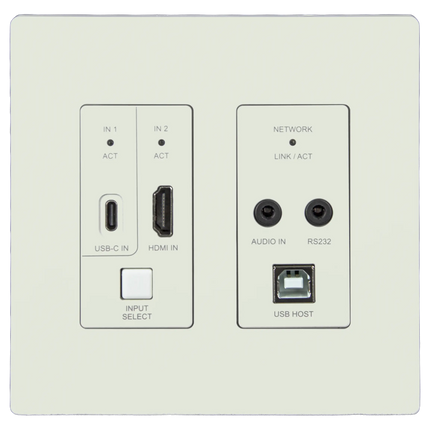

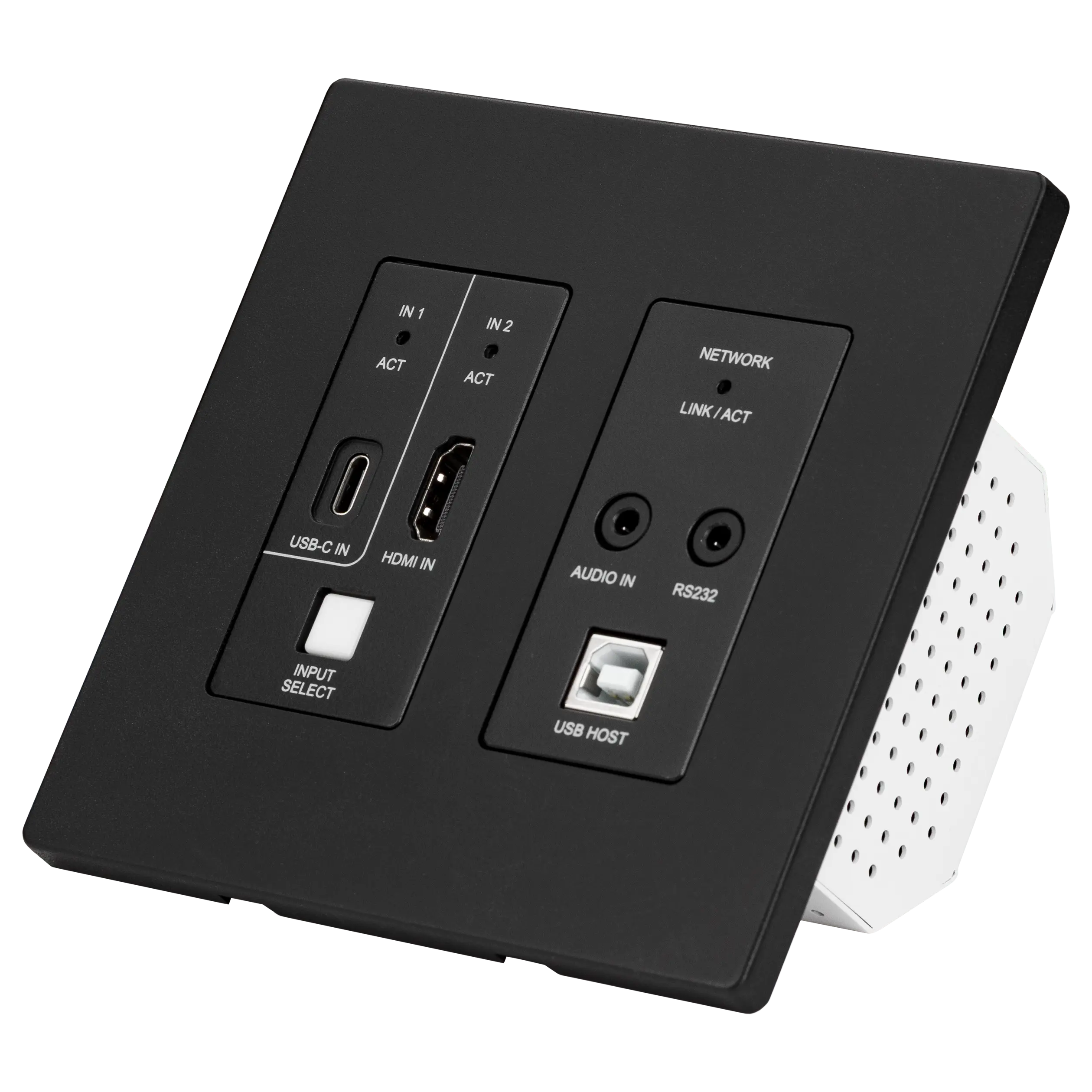

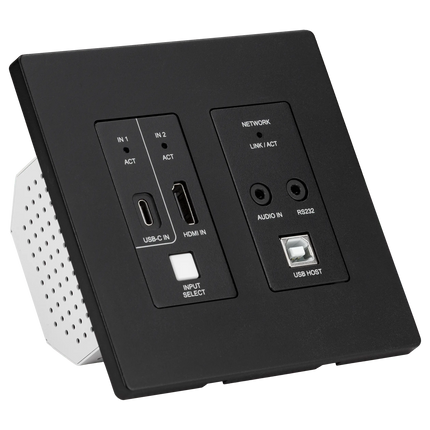

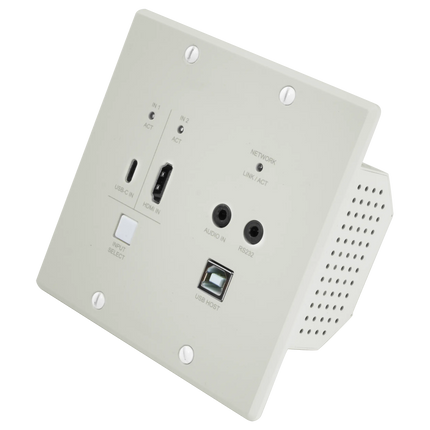

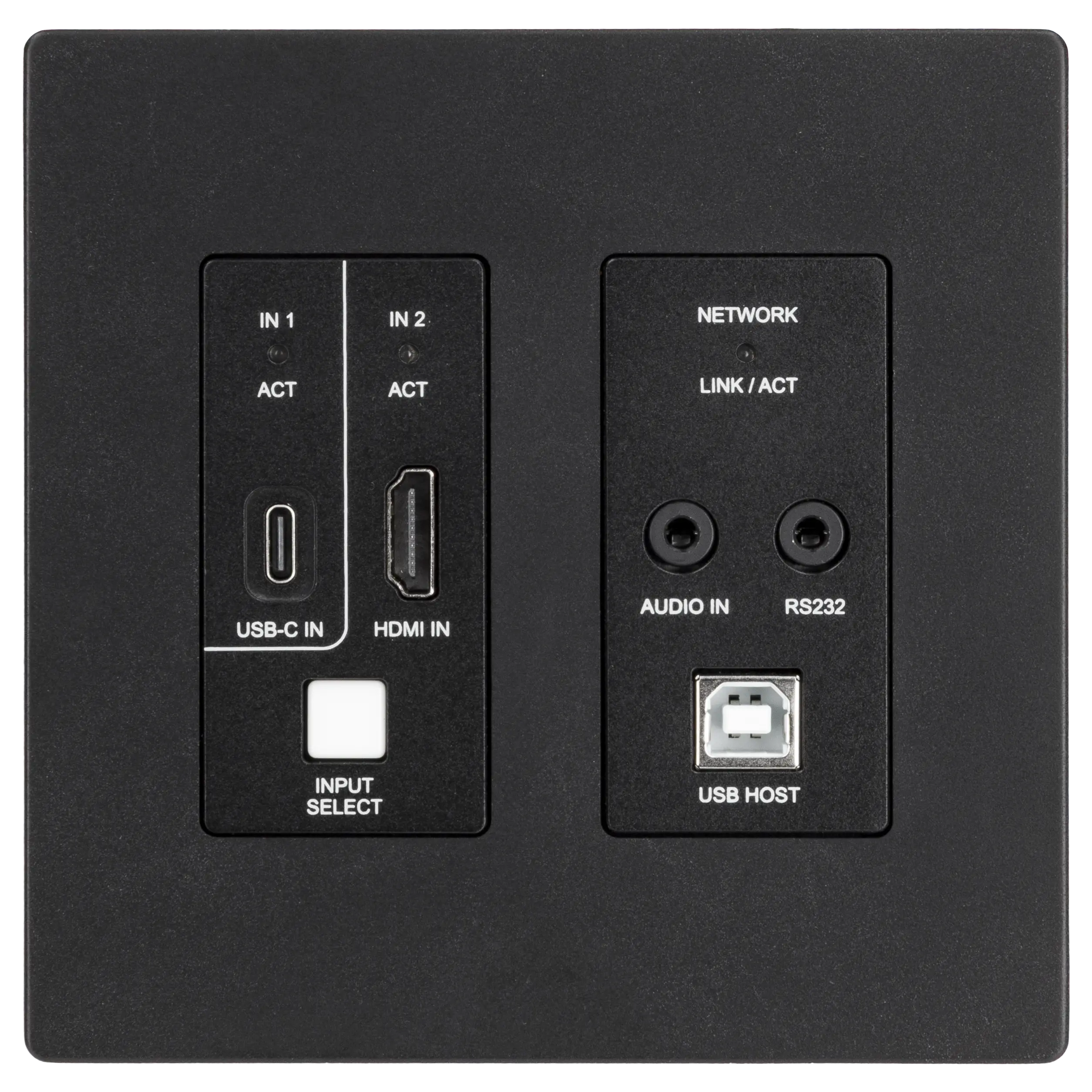

Dual Inputs - The EV2WP includes switchable HDMI and USB-C inputs to ensure broad compatibility with modern source devices. The USB-C input supports both DisplayPort Alt-mode and USB 2.0 data through a single connection.
USB & KVM - Connect a wide range of USB peripherals such as a keyboard and mouse or webcams and IMAG devices to extend them over the network to remote computers to create IP-based USB systems.
Control Signal Routing - Evolution II endpoints are equipped with various control signal I/O. Using the powerful MXnet API, you can send control commands over the network to practically any 3rd-party component in a system such as displays and source devices.
| Encoding | |
| Video Codec | Proprietary Codec based on M-JPEG |
| Audio Codec | Proprietary Codec |
| Latency | 16 ms@60 Hz |
| Ultra Low Latency Mode | 2 ms to 4 ms@60 Hz |
| Streaming Protocols | TCP, UDP, IP, IGMP-V2 |
| HDCP / Copy Protection | HDCP 2.2 and earlier |
| Video Input/Ingestion | |
| Signal Type | DVI 1.0 (ingested, outputs as HDMI), HDMI 2.0b, DisplayPort 1.2 via USB-C alt-mode * |
| Video Resolution | 720p@50/60 Hz; 1080p@24, 50 & 60 Hz; 4K@50/60 Hz 4:4:4*; 4K@30 Hz 4:4:4; 4K@60 Hz 4:2:0;4:2:2 4K@24 Hz 4:2:0/4:2:2 [Ultrawide Support] |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0, RGB |
| Color Bit Depth | 1080p 8-,10-,12-bit, 4K 8-,10-,12-bit |
| Visually Lossless | 4096x2160p@60 Hz (8-bit) 4:4:4 or RGB; 3840x2160p@60 Hz (12-bit) 4:2:2 Dolby Vision; 3840x2160p@60 Hz (10-bit) 4:2:2 HDR10/HLG; 1920x1080p@60 Hz (12-bit) |
| Audio | |
| Audio Format (end to end) | PCM 2, 5.1, 7.1 Channel, Dolby Digital 5.1 Channel, Dolby Digital Plus, DTS 5.1 Channel, DTS–ES, DTS–HD High Resolution, DTS-HD Master Audio, Dolby Atmos |
| Embedded Audio | Stereo Analog Audio (3.5 mm jack) |
| Communication/Control of External Devices | |
| USB | HID-Compliant; USB 2.0 (bandwidth limited to 120 Mbps) * |
| HDMI | HDCP 2.2, EDID Management, CEC |
| Ports | |
| Ethernet / LAN | (1) × female RJ45, PoE |
| HDMI | (1) × HDMI Type-A 19-pin, female, one HDMI input |
| Audio | (1) × 3.5 mm mini stereo jack, VGA Audio Input |
| RS-232 | (1) × 3.5 mm female jack |
| USB | (1) × USB 2.0 Type-B for data *; (1) × USB-C for MXnet service *; (1) x USB-C for video input and data * |
| Distance | |
| Ethernet / LAN | 100 m (330 ft.) over CAT 5e and above |
| Environmental | |
| Operating Temperature | 23 to 125 °F (-5 to 51 °C) |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
| Operating Humidity | 5% to 90% RH, non-condensing |
| Power | |
| Power Consumption | Max: 6.7 W |
| PoE | IEEE 802.3af (15.4 W) |
| Physical | |
| Mounting | Wall and furniture mount support |
| Dimensions (Unit) | W × D × H: 92.08 × 53.98 × 109.54 mm Inch: 3.625 x 2.125 x 4.3125 + Faceplate: W × D × H: 115.89 × 57.15 × 115.89 mm Inch: 4.5625 x 2.25 x 4.5625 Inch: 6.0625 x 5.125 x 3.375 |
| Dimensions (Packaged) | W × D × H: 153.99 × 130.18 × 85.73 mm |
| Weight (Unit) | + Faceplate: 1.03 lb. (0.47 kg) |
| Weight (Packaged) | 1.23 lb. (0.56 kg) |
| Warranty | 10 years; Specifications subject to change without notice. Mass & dimensions are approximate |
| Notes | *USB 2.0 via the USB-C connection is available on hardware revision B or newer |

AC-MXNET-1G-EWPV2 (Encoder/Transmitter Device)
